Sensor (tray 1 media out) removal
1 Remove the right cover. “Right cover removal (MX71x)” on page 438.
2 Remove the rear lower door. See “Rear lower cover removal” on page 551.
3 Remove the LVPS. See “LVPS removal” on page 445.
4 Remove the left cover. See “Left cover removal (MX71x)” on page 416.
5 Remove the board housing. See “Board housing removal” on page 431.
6 Remove the media tray. See “Media tray removal” on page 538.
7 Remove the pick roller assembly. See “Pick roller assembly removal” on page 541.
8 Remove the media feeder. See “Media feeder removal” on page 429.

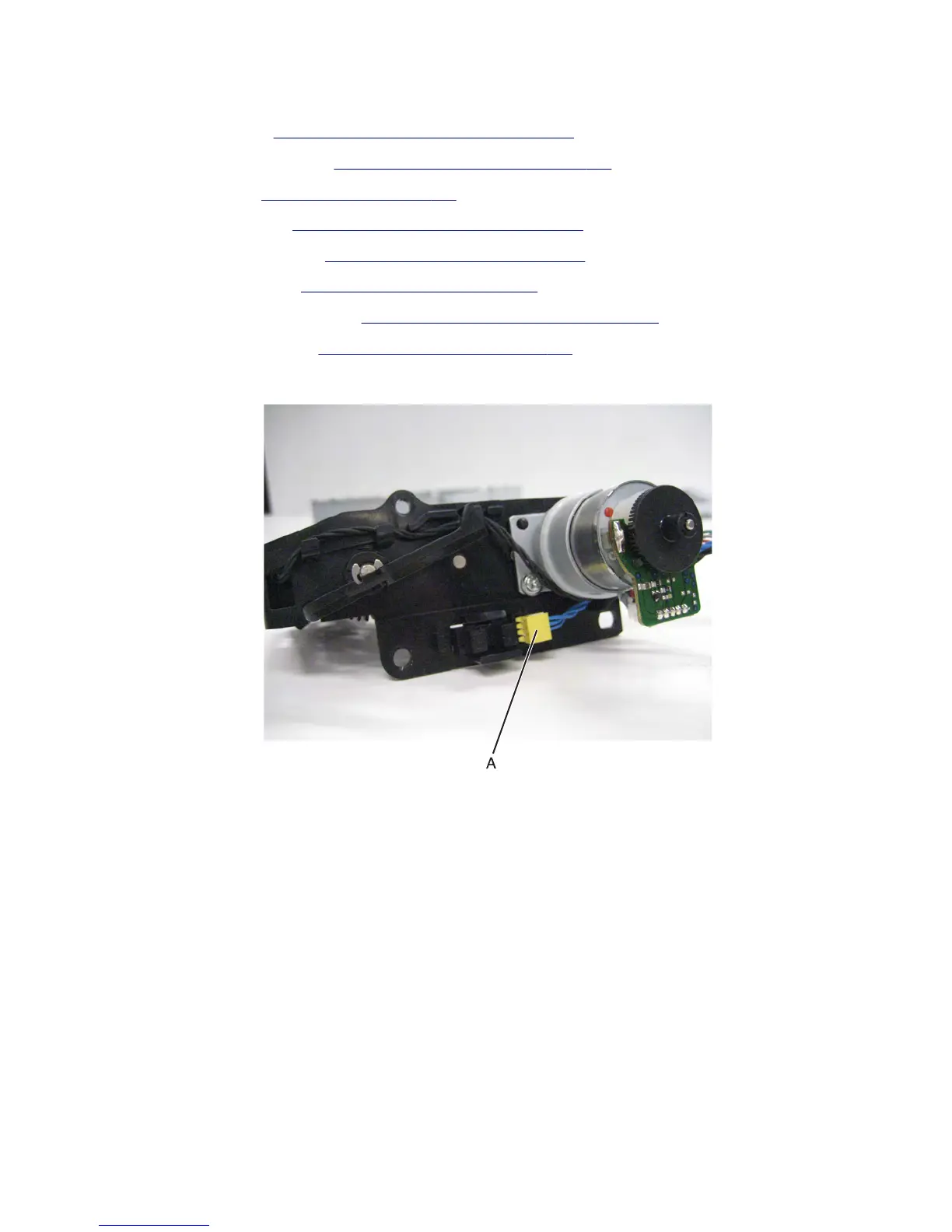

9 Disconnect the cable (A) from the sensor (tray 1 media out).
7463
Repair information
543
