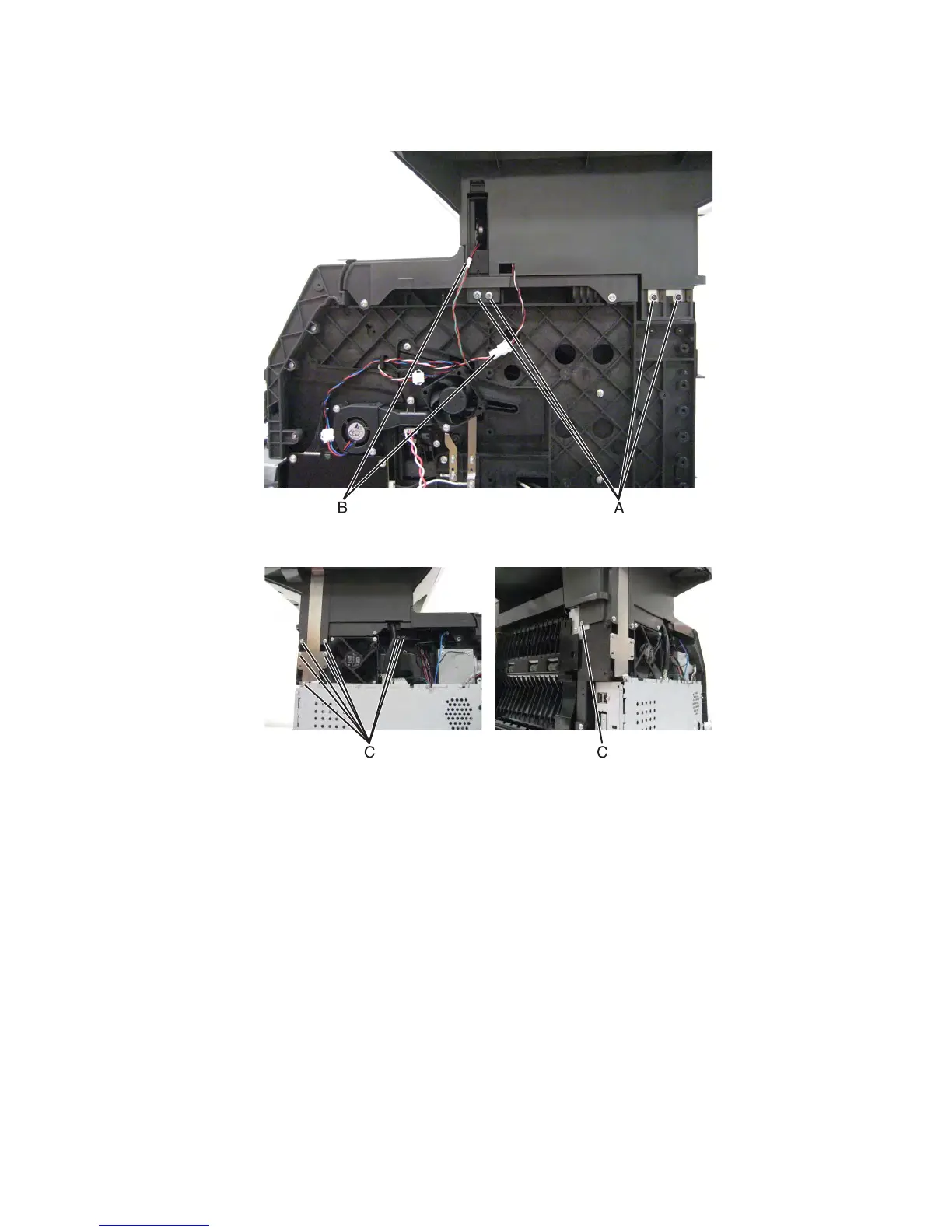

4 On the right side of the machine, remove the four (A) screws securing the ADF/scanner assembly to the machine.
5 Disconnect the two cables (B).
6 On the left side of the machine, remove the eight (C) screws securing the ADF/scanner assembly to the machine.
