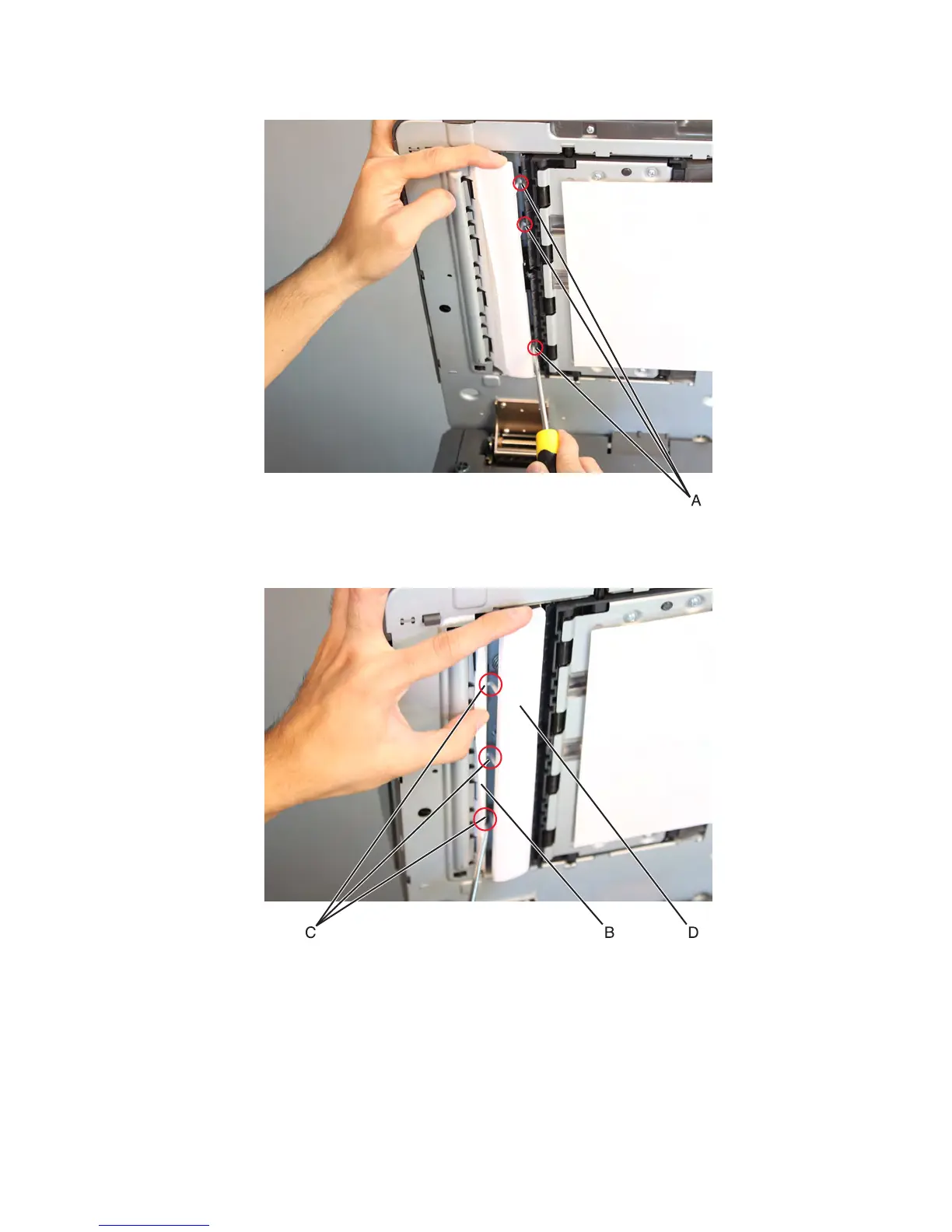

2 Pry the ADF float plate in three locations (A) on the right side.
3 Set the paper deflector (B) aside, then pry the ADF float plate in three locations (C) on the left side.
4 Remove the ADF float plate with springs (D).
7463
Repair information
