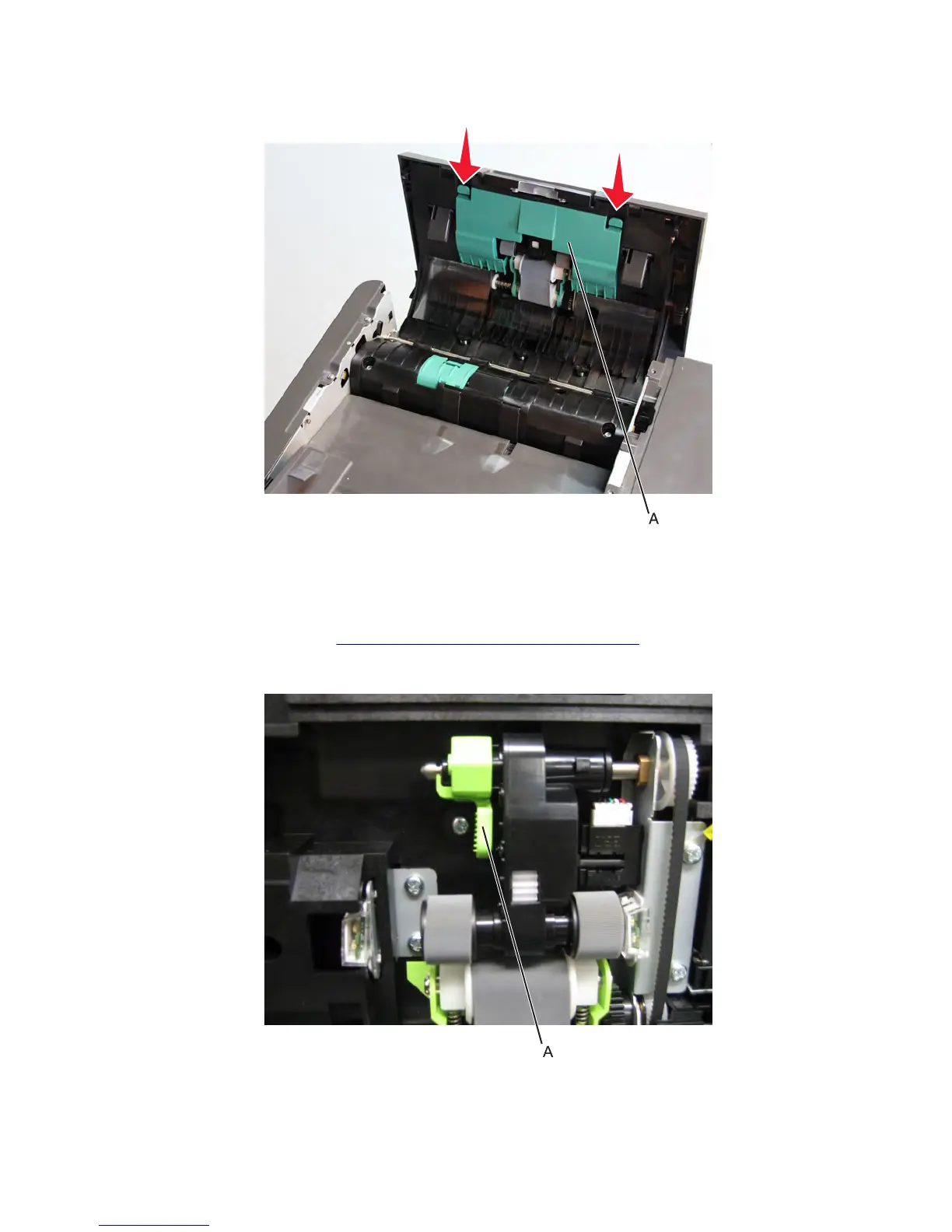

2 Press the two latches on the ADF pick roller cover, and then remove the ADF pick roller cover (A).
ADF pick roller removal
1 Open the ADF door.
2 Remove the pick roller cover. See “ADF pick roller cover removal” on page 595.
3 Squeeze the pick roller latch (A).
7463
Repair information
596
