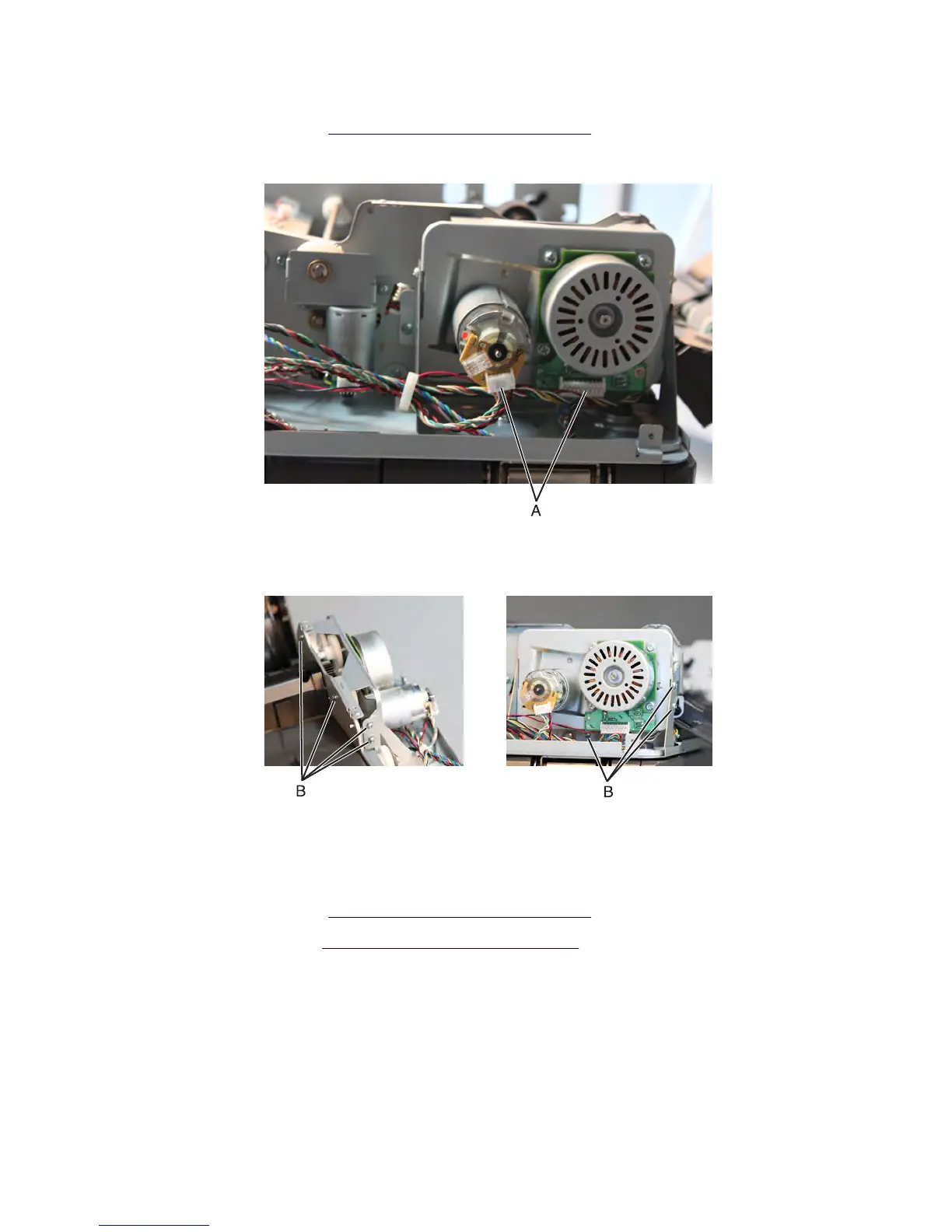

ADF rear side drive parts pack removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.
2 Disconnect the two connectors (A).
3 Remove the seven screws (B) securing the ADF rear side drive parts pack.
4 Remove the ADF rear side drive parts pack.
ADF right hinge removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.
2 Remove the ADF assembly. See “ADF assembly removal” on page 576.
3 Remove the four screws (A) on the ADF right hinge.
7463
Repair information
600
