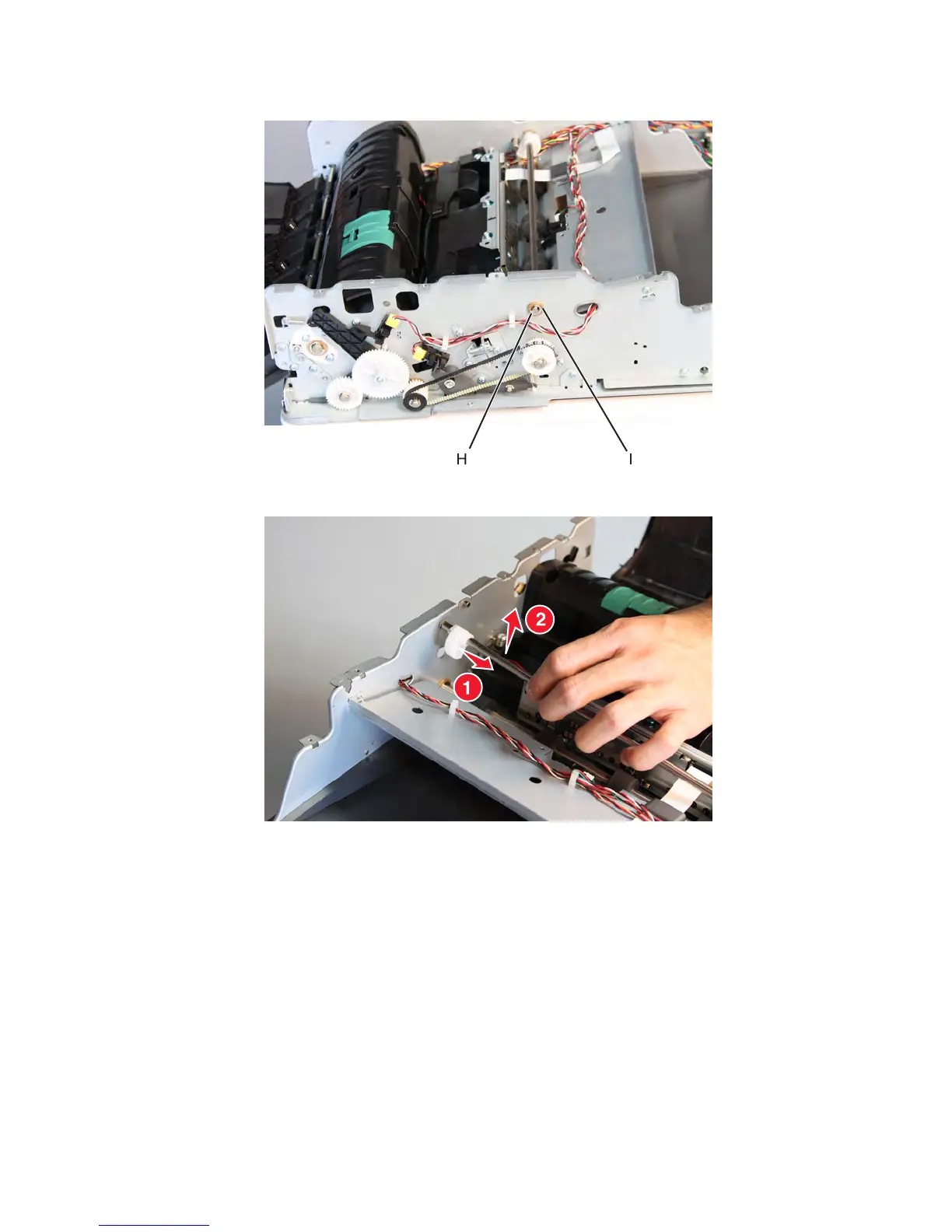

9 Remove the c-clip (H) and bushing (I) from the front of the ADF tray lift drive.
10 Pull then lift the ADF tray lift drive shaft to remove.
7463
Repair information
611
