5 Remove the ADF input tray. See “ADF input tray removal” on page 589.
6 Remove the ADF lift tray. See “ADF lift tray removal” on page 594.

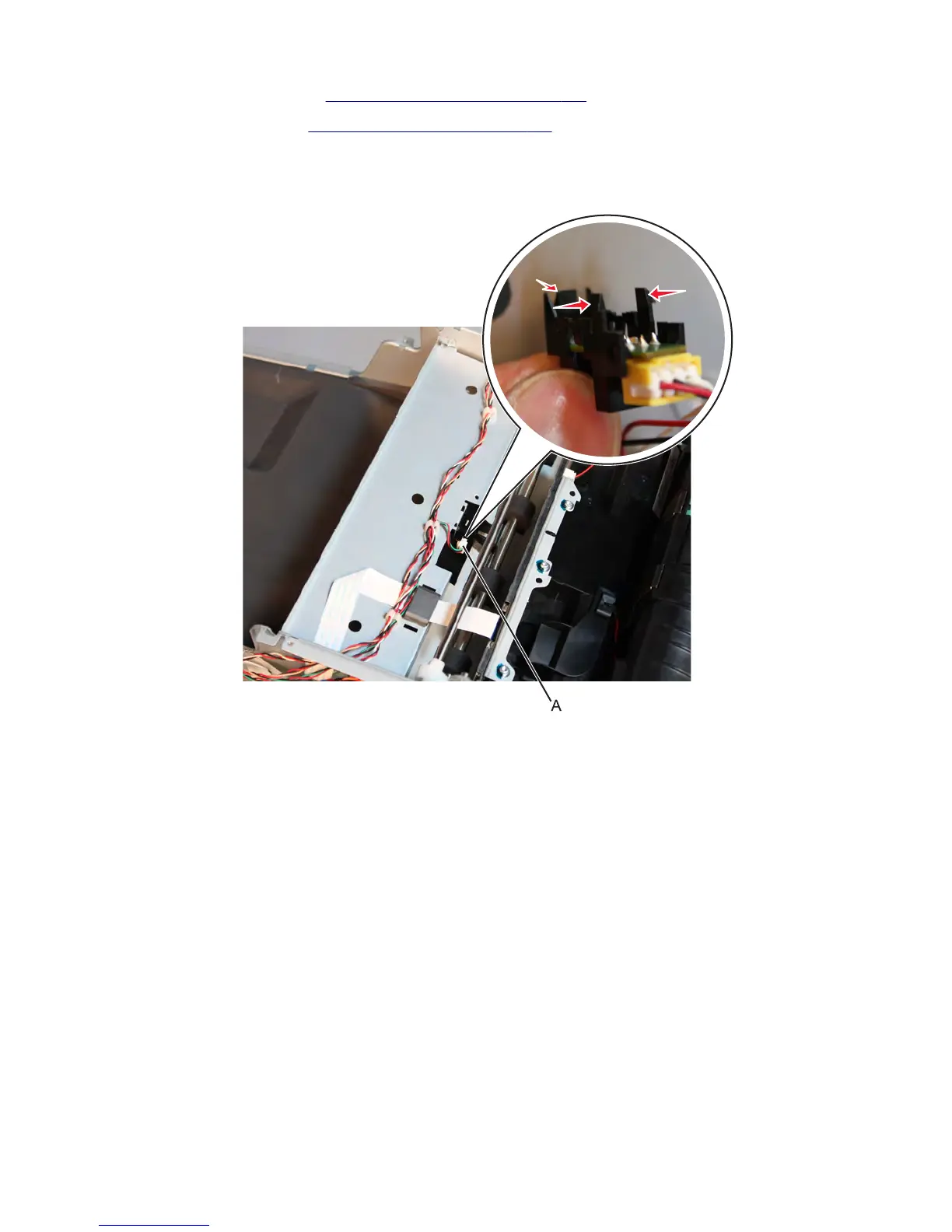

7 Disconnect the cable (A) from the sensor.
8 Remove the mylar, and then pinch the snap of the sensor to remove.
7463
Repair information
616
