Multifeed sensor parts kit removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 587.
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.
3 Remove the ADF left lower cover. See “ADF left lower cover removal” on page 592.
4 Remove the ADF pick roller cover. See “ADF pick roller cover removal” on page 595.
5 Remove the ADF pick roller. See “ADF pick roller removal” on page 596.
6 Open the ADF door.

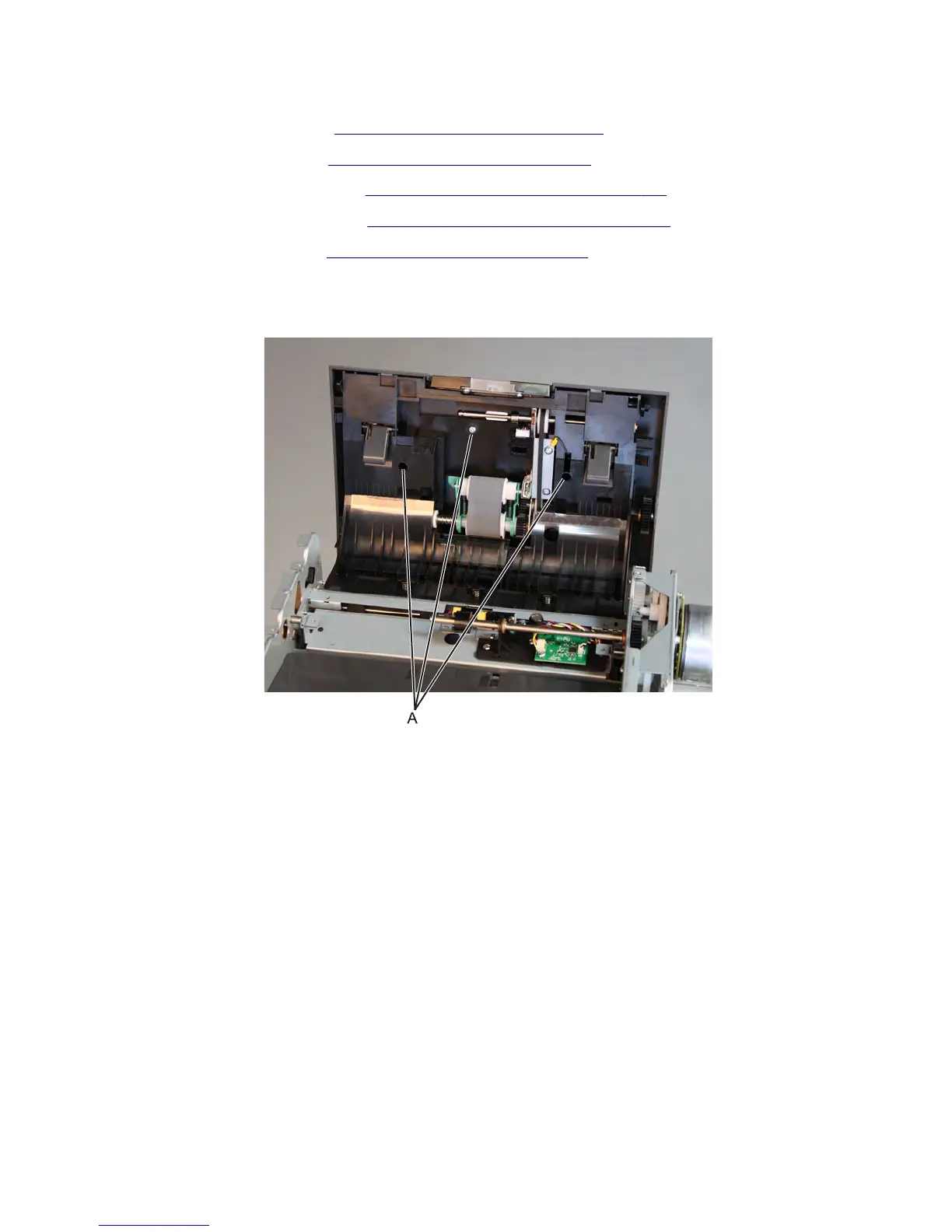

7 Remove the three screws (A).
7463
Repair information
618
