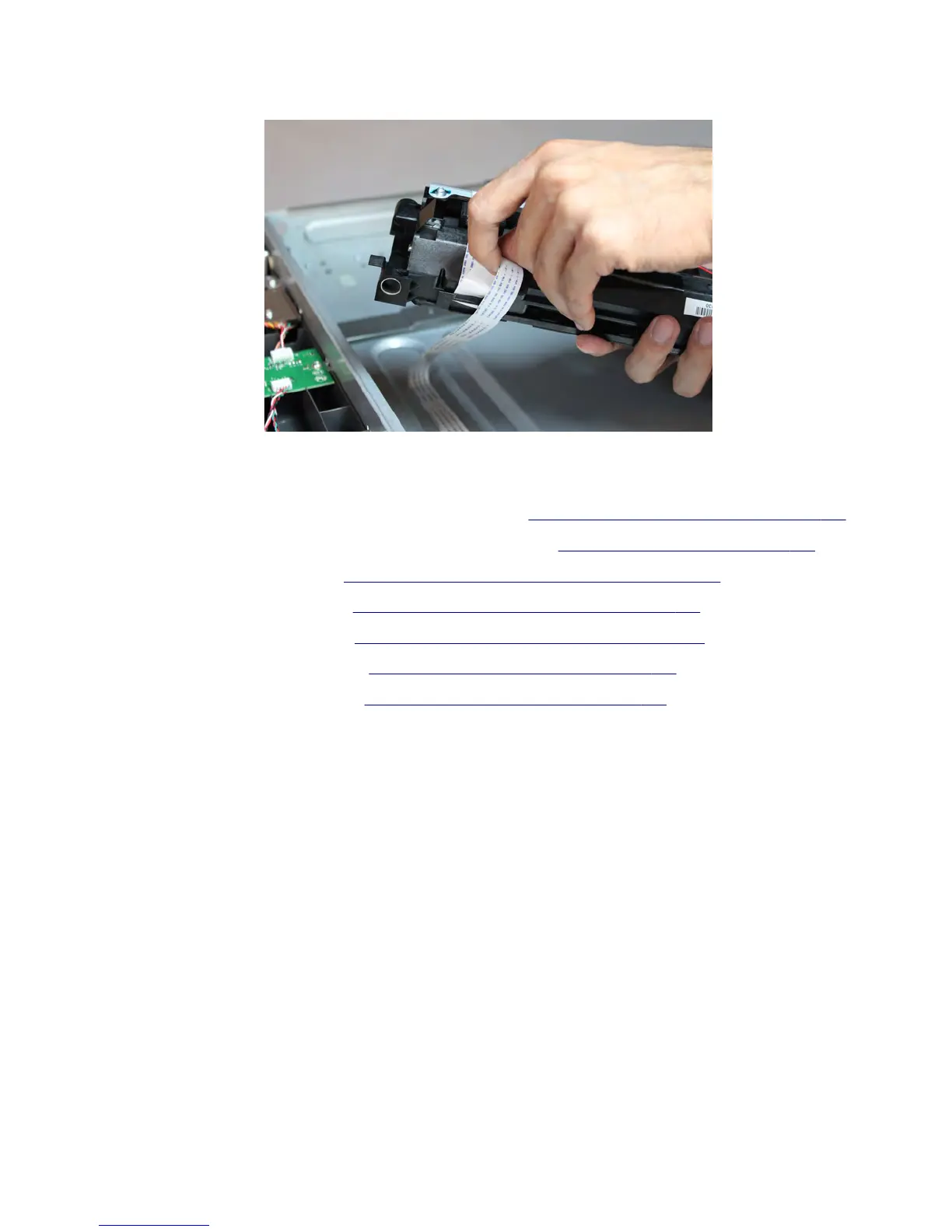

12 Route off the FFC from the flatbed CCD scanner to completely remove.
Flatbed scanner drive parts kit removal
1 Remove the ADF/scanner assembly from the base printer. See “ADF/scanner assembly removal” on page 572.
2 Remove the ADF assembly from the flatbed scanner assembly. See “ADF assembly removal” on page 576.
3 Remove the flatbed left cover. See “Flatbed scanner left cover removal topic” on page 633.
4 Remove the flatbed right cover. See “Flatbed scanner right cover removal” on page 634.
5 Remove the flatbed front cover. See “Flatbed scanner front cover removal” on page 630.
6 Remove the flatbed scanner glass. See “Flatbed scanner glass removal” on page 641.
7 Remove the flatbed CCD scanner. See “Flatbed scanner CCD removal” on page 634.
8 Remove the two screws (A).
7463
Repair information
638
