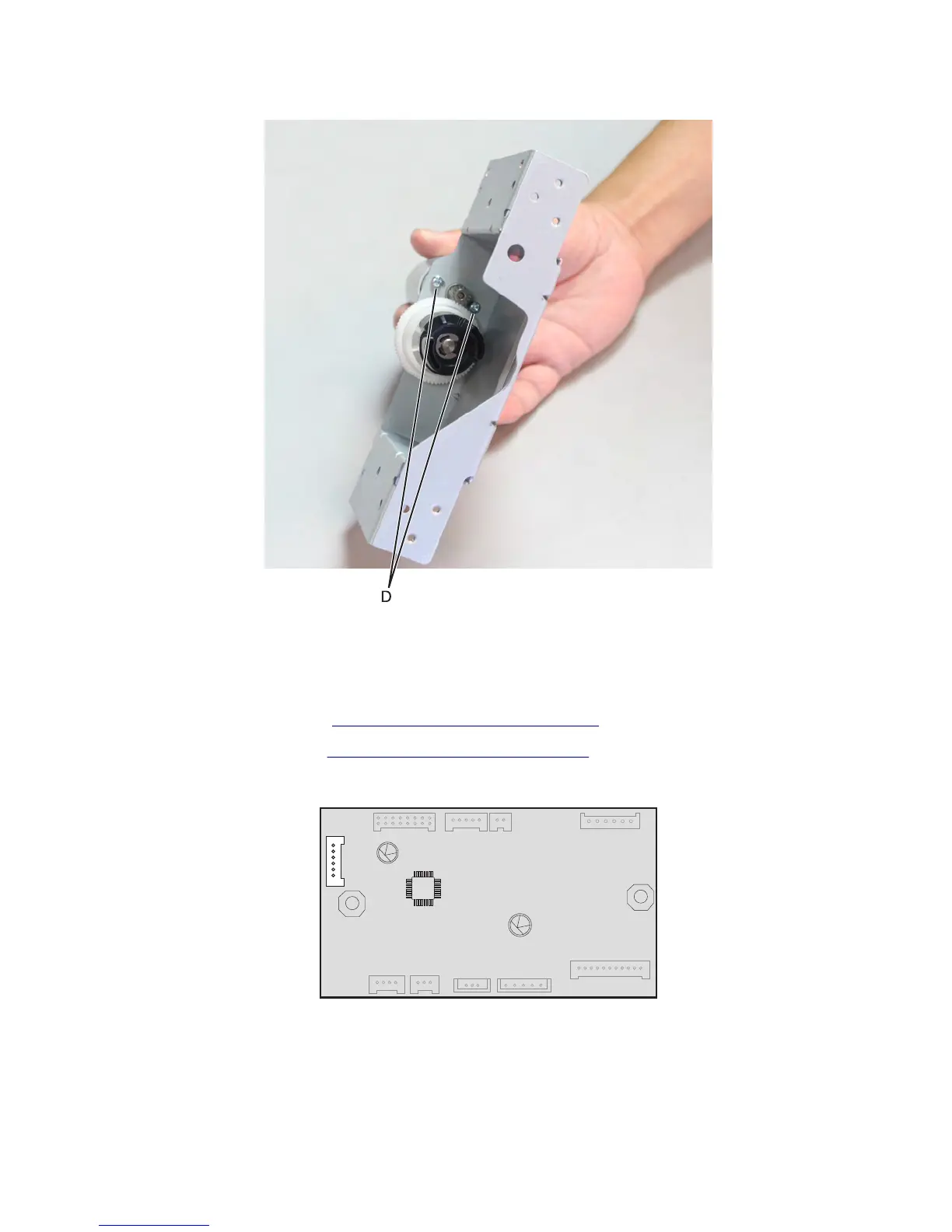

5 Lift the motor cover, and remove the two screws (D) using a #1 Phillips screwdriver.
6 Remove the lift drive motor.
HCIT interface cable removal
1 Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671.
2 Remove the HCIT left cover. See “HCIT left cover removal” on page 672.
3 Disconnect the interface cable J1 from the controller board.
7463
Repair information
681
