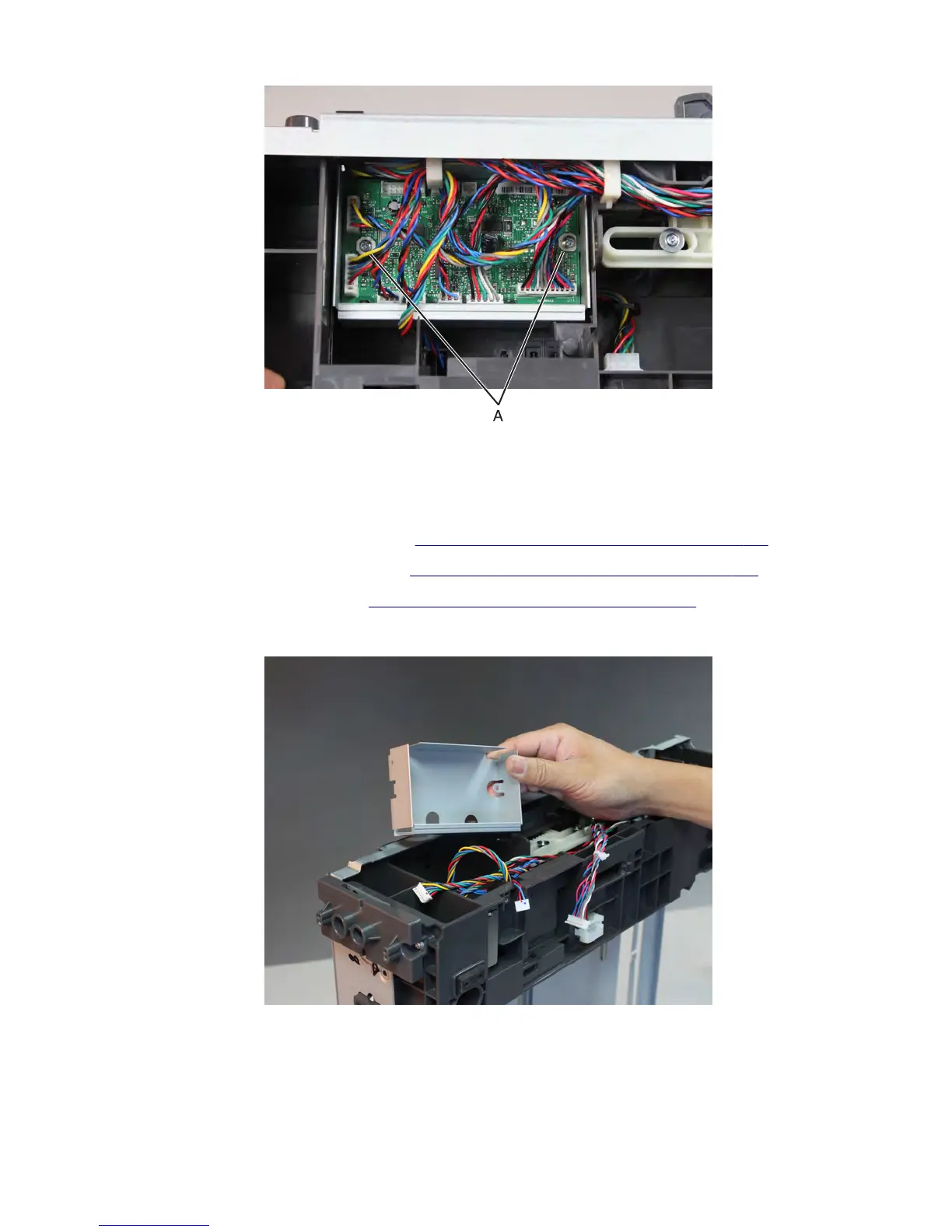

4 Remove the controller board.
Drawer upper interface cable removal
1 Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 691.
2 Remove the drawer assembly left cover. See “Drawer assembly left cover removal” on page 692.
3 Remove the tray controller board. See “Drawer controller board removal” on page 693.
4 Remove the controller board shield.
7463
Repair information
