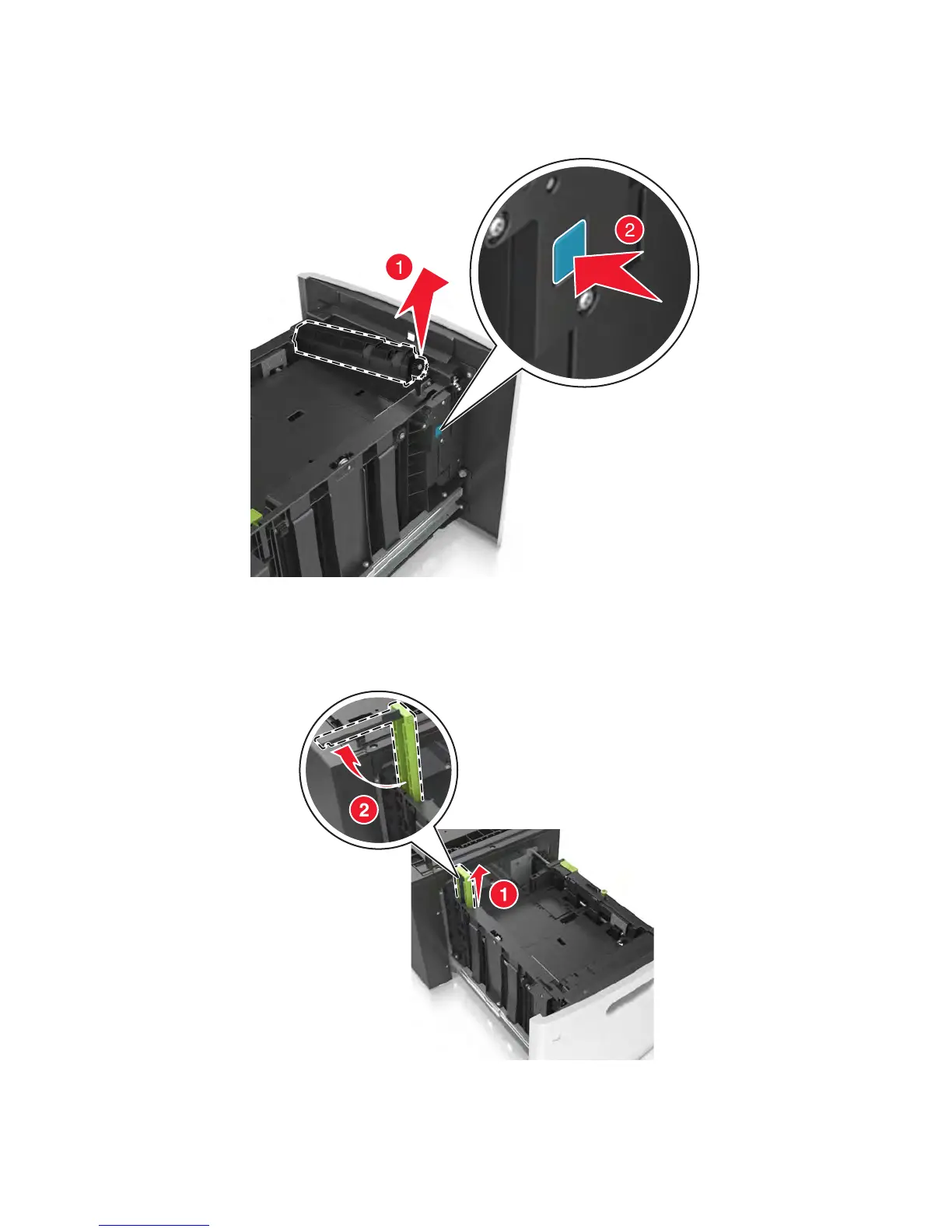

HCIT separator roll assembly removal
Press and hold the button (1), then pull the separator roll assembly and remove (2).
HCIT media guide removal
Pull the media guide out of the tray, and remove.
7463
Repair information
