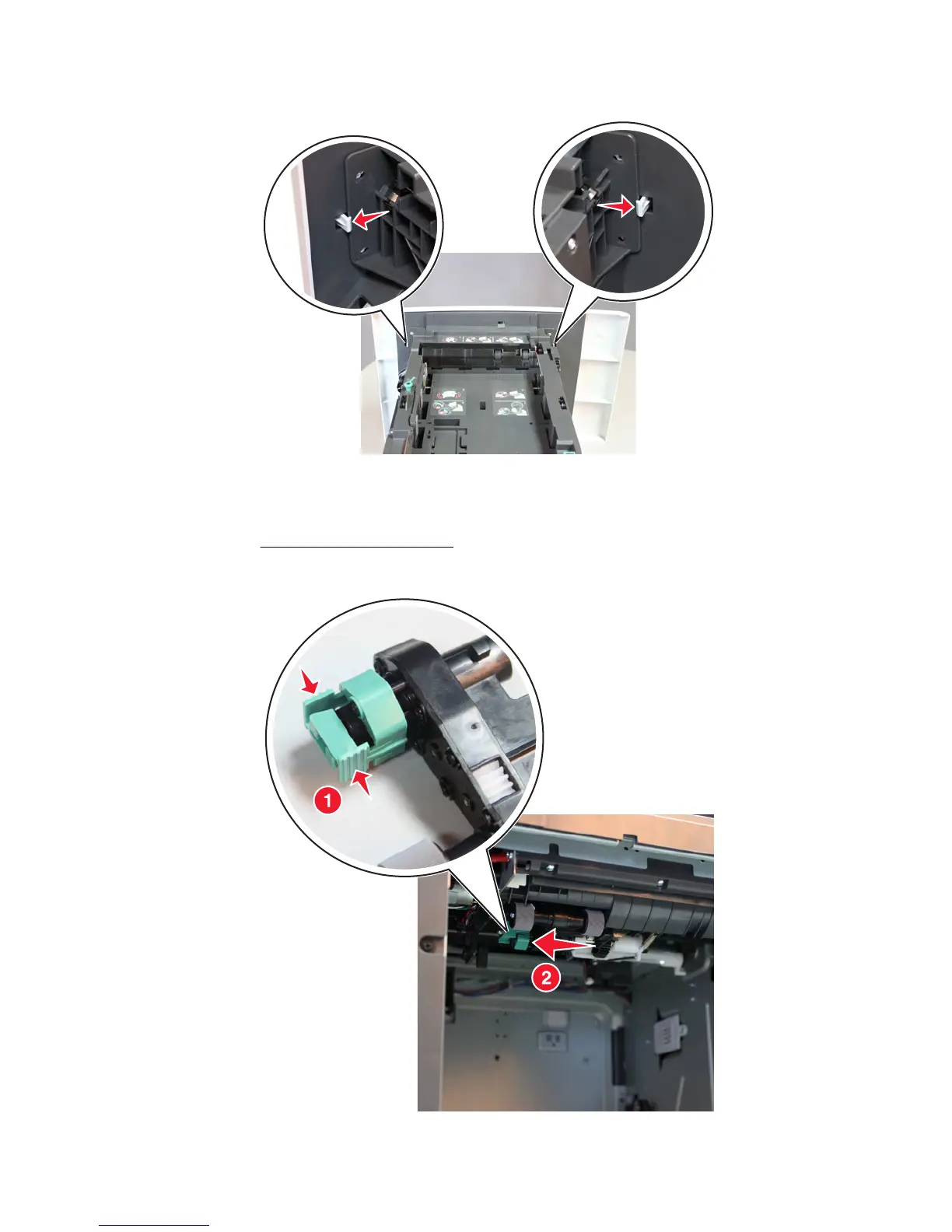

4 Release the latches, and remove the media tray front cover.
HCIT pick arm assembly removal
1 Remove the HCIT. See “HCIT removal” on page 705.
2 Push the latches inward (1), and pull out the pick arm assembly (2).
7463
Repair information
708
