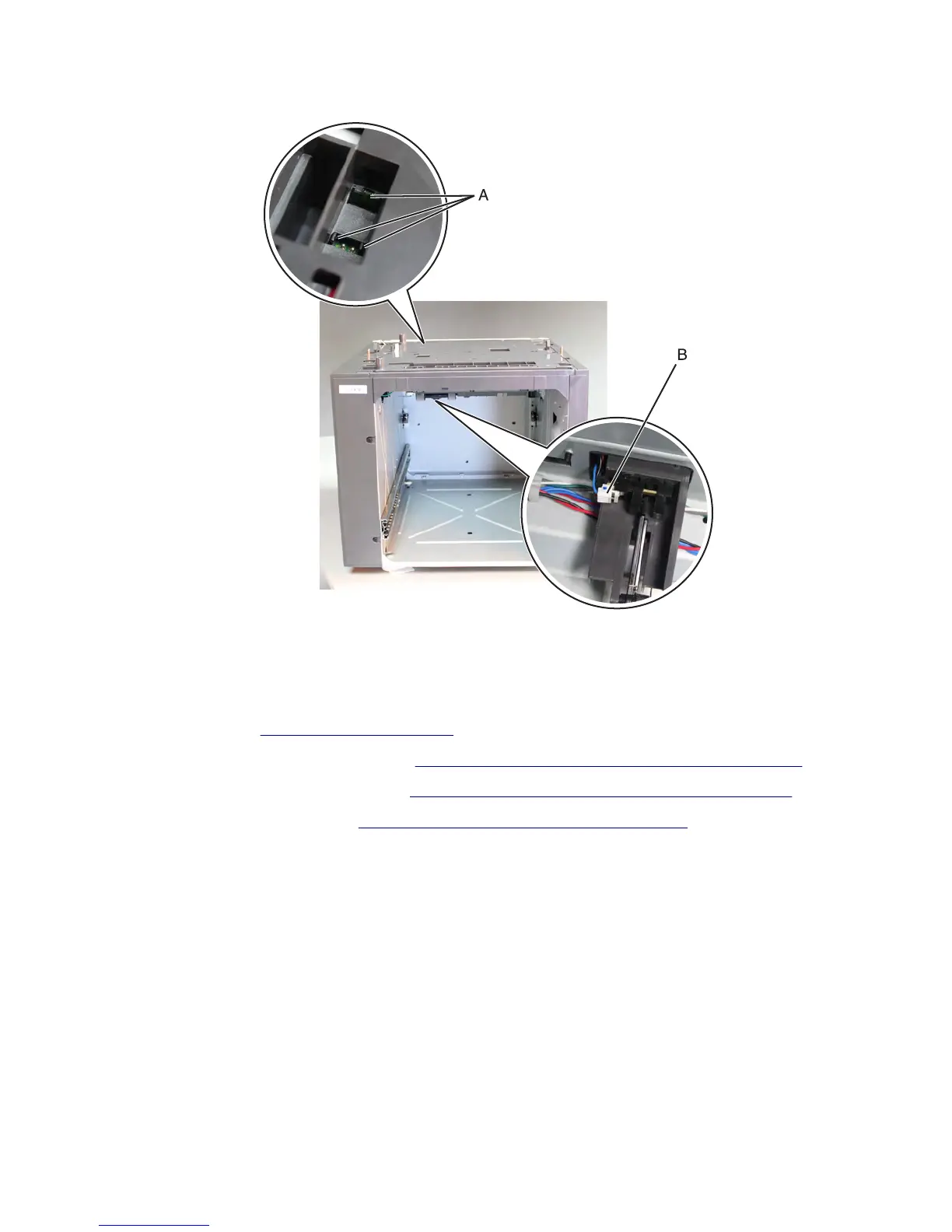

5 Disconnect the cable (B), and remove the sensor (HCIT closed).
6 Flex the brace to release, then remove the flag.
Sensor (pick roll position) removal
1 Remove the HCIT. See “HCIT removal” on page 705.
2 Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 709.
3 Remove the drawer assembly left cover. See “HCIT drawer assembly left cover removal” on page 709.
4 Remove the top cover assembly. See “HCIT top cover assembly removal” on page 712.
