Lexmark MX71 Series - Page 356

3 Remove the rear door assembly.
Stapler/offset stacker left cover removal
Note: This is not a FRU.

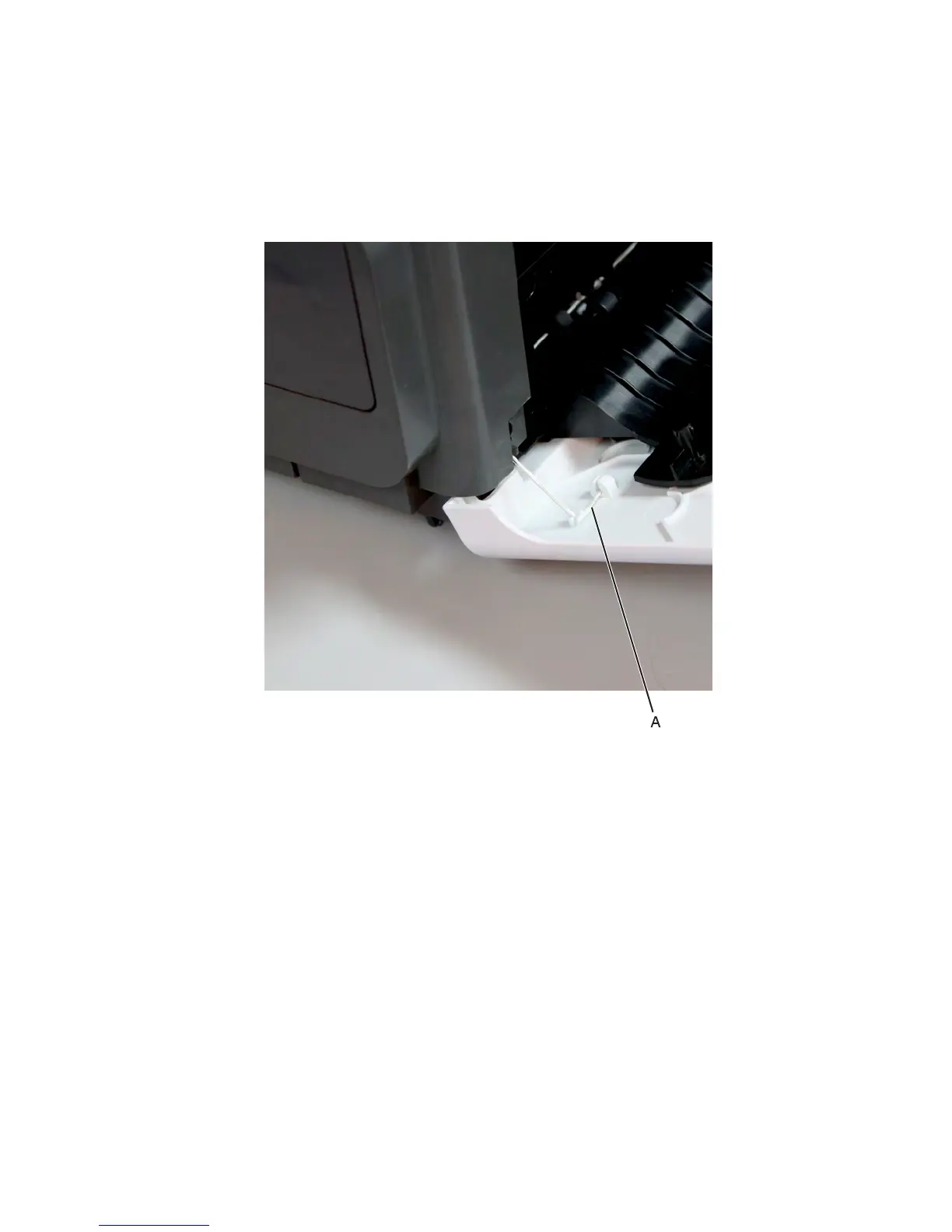

1 Open the rear door, then detach the string (A) from the rear door.
Installation note: Fasten the string end (B) to the rear side to prevent it from recoiling into the interior of the
stapler/offset stacker.
7463
Repair information
726
