Stapler/offset stacker tray link assembly removal
Left tray link removal
1
Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.

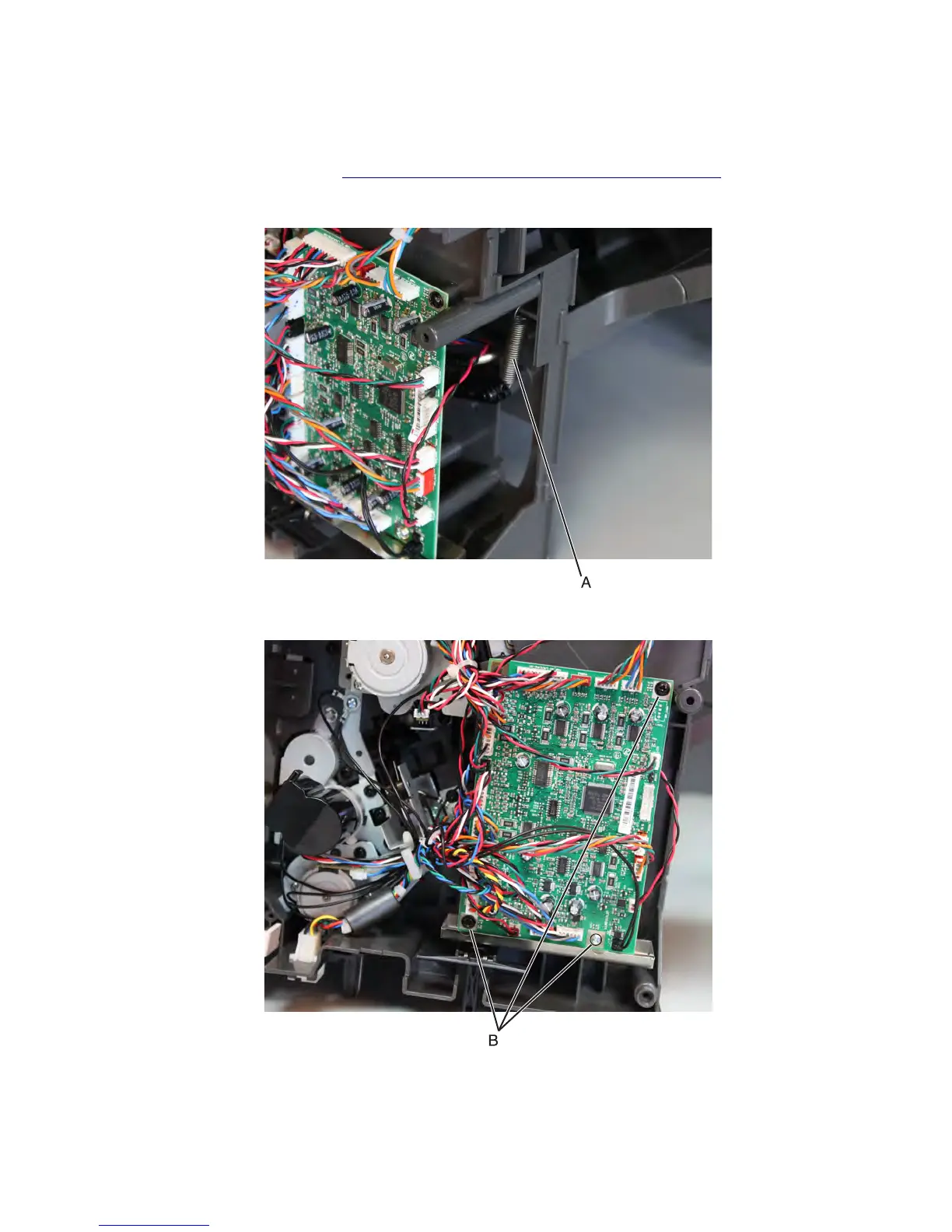

2 Unhook the spring (A) to release the tray link.
3 Remove the three screws (B) securing the controller board. Move the board to access the link underneath it.
