Standard output bin LED removal

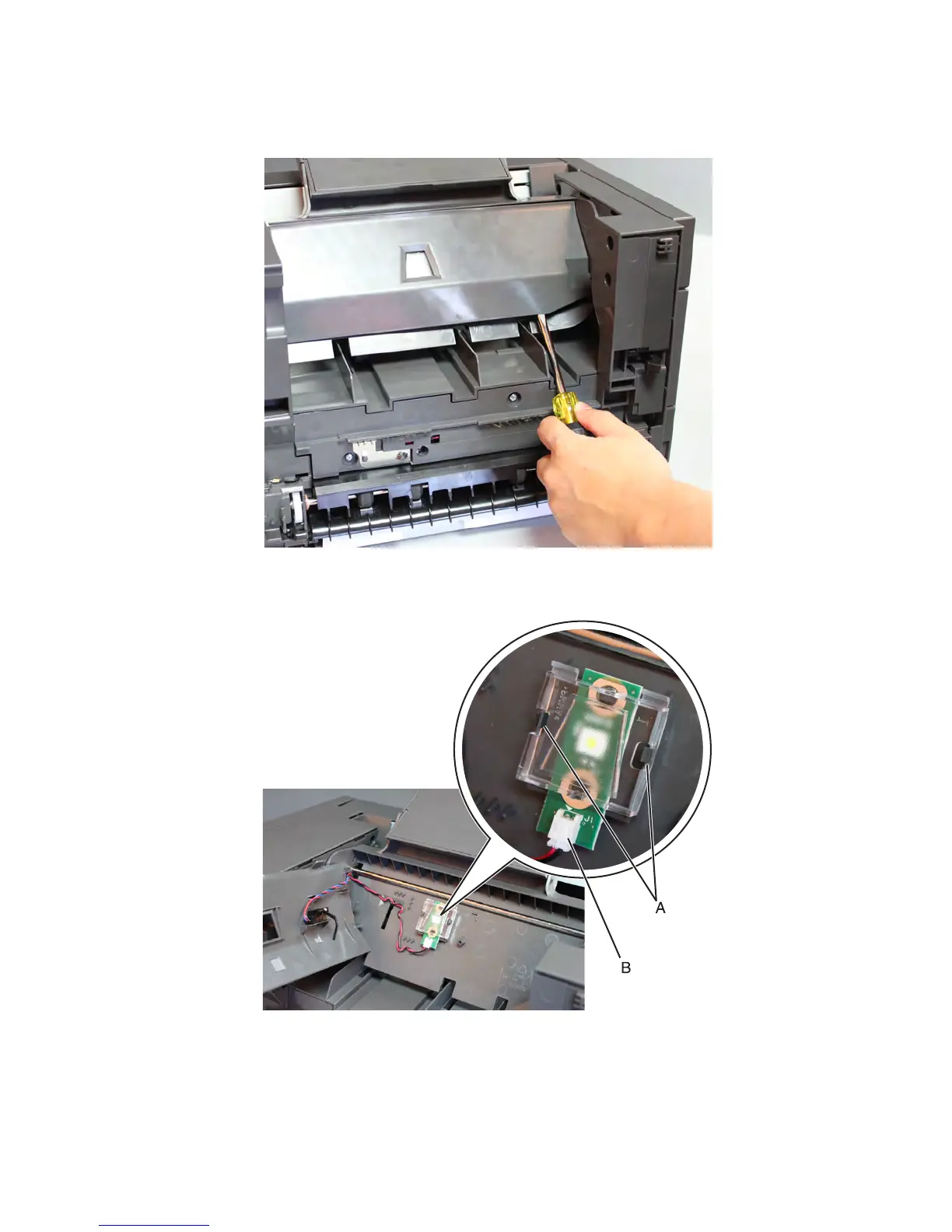

1 With a prying tool, open the LED sensor cover.
2 Release the latches (A) to remove the LED clear lens. Disconnect the cable (B), and remove the standard output bin
LED.
