Paddle drive motor removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 782.

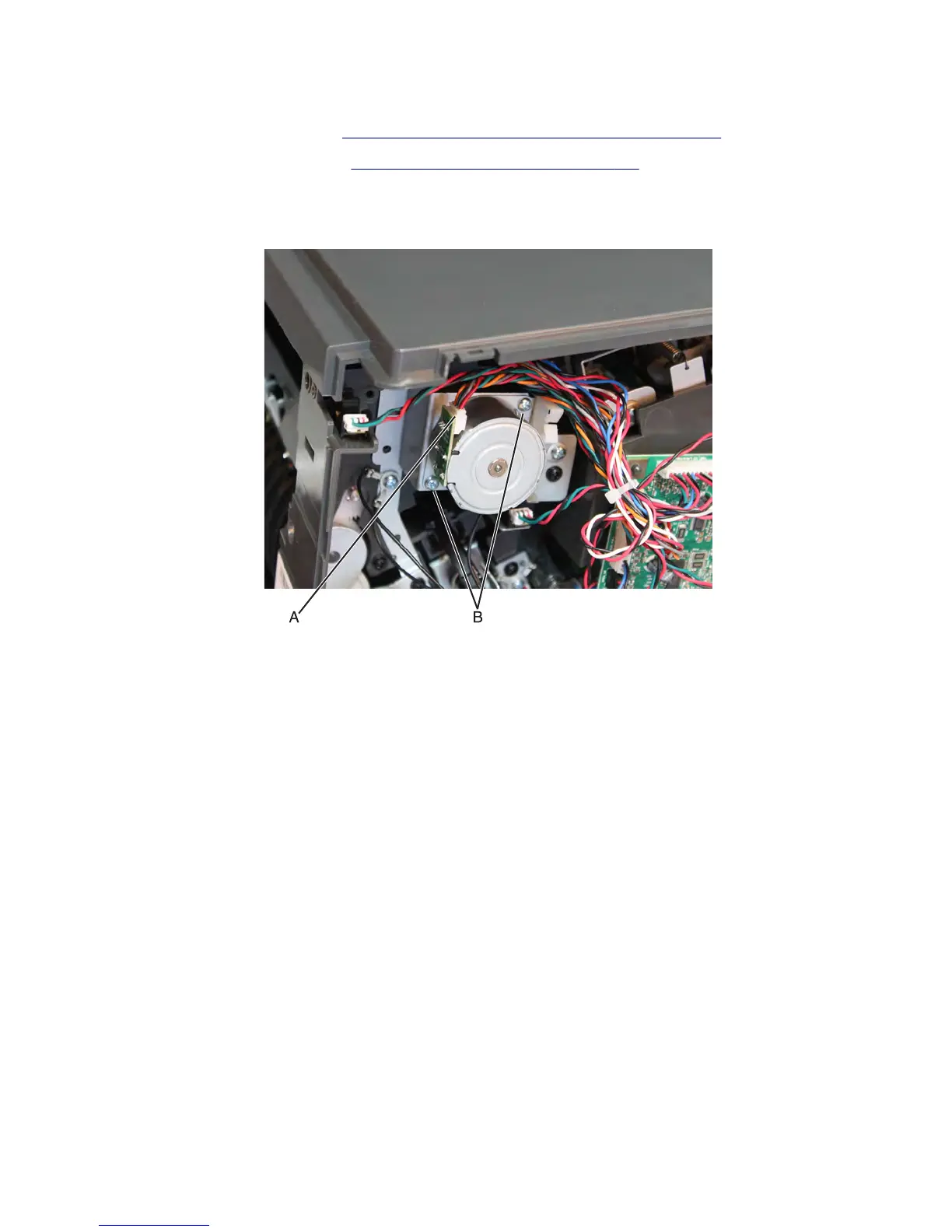

3 Disconnect the cable (A) from the drive motor.
4 Remove the two screws (B), then remove the paddle drive motor.
