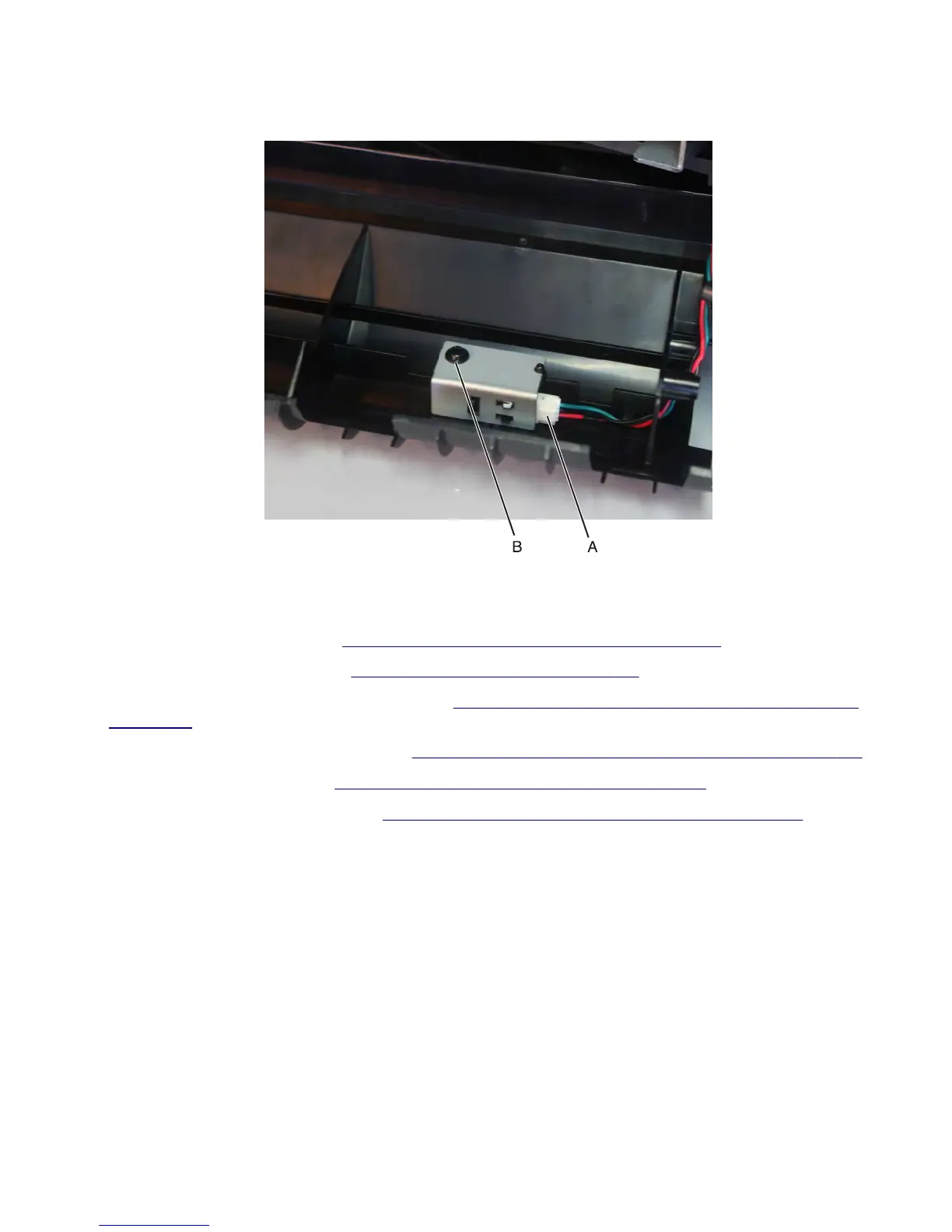

7 Disconnect the sensor cable (A), and then remove the screw (B) from the sensor bracket. Release the latches securing
the sensor to the bracket, and then remove the sensor.
Stapler/offset stacker ejector motor assembly removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 782.
3 Remove the stapler diverter plunger assembly. See “Stapler/offset stacker diverter plunger assembly removal”
on page 760.
4 Remove the stapler drive gear assembly. See “Stapler/offset stacker drive gear assembly removal” on page 761.
5 Remove the stapler feed roll. See “Stapler/offset stacker feed roll removal” on page 765.
6 Remove the stapler chute assembly. See “Stapler/offset stacker chute assembly removal” on page 767.
