Stapler carriage assembly removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 782.

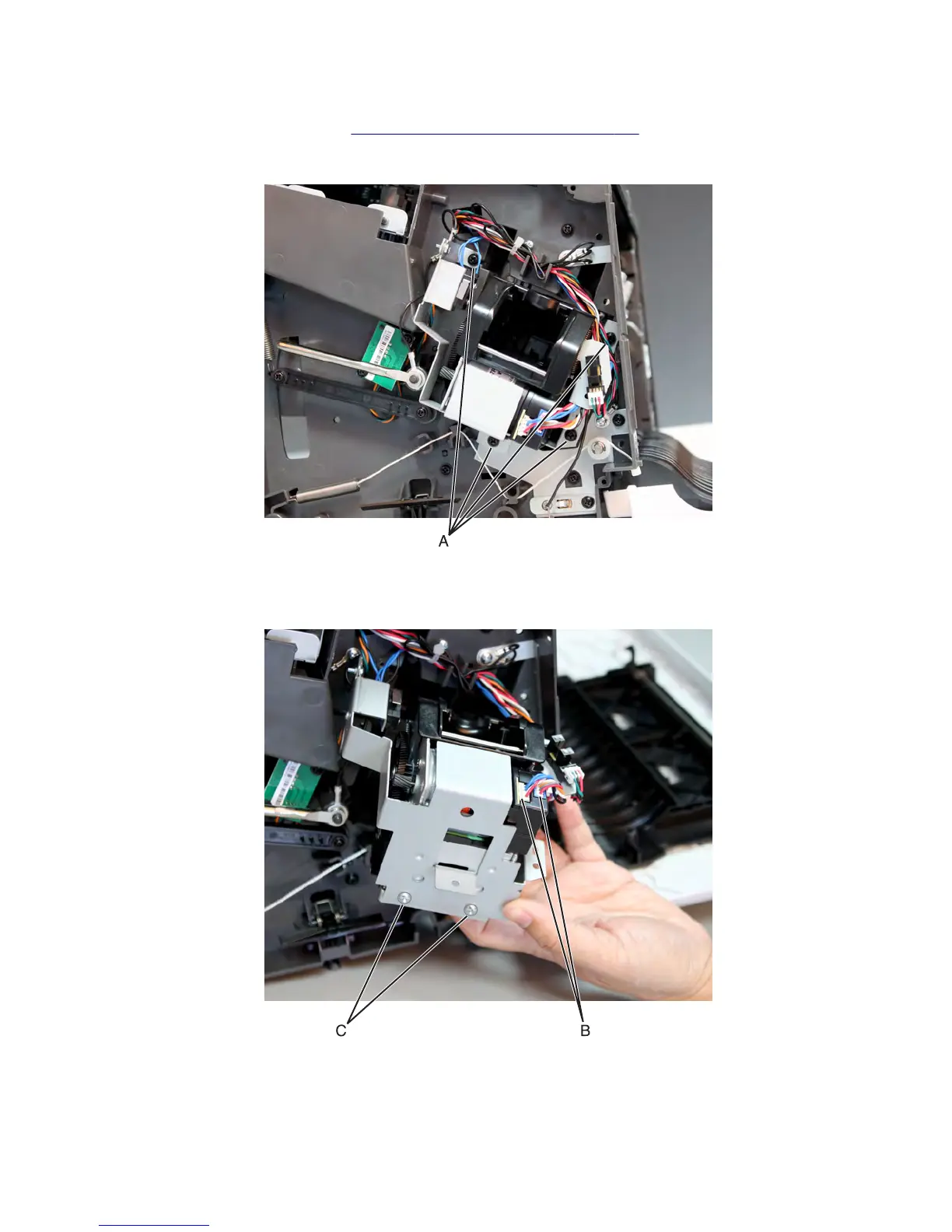

2 Remove the four screws (A) securing the stapler carriage frame.
3 Disconnect the two cables (B) from the stapler carriage assembly.
4 Lift the stapler carriage frame, then remove the two screws (C) from the stapler carriage assembly.
5 Remove the stapler carriage assembly.
