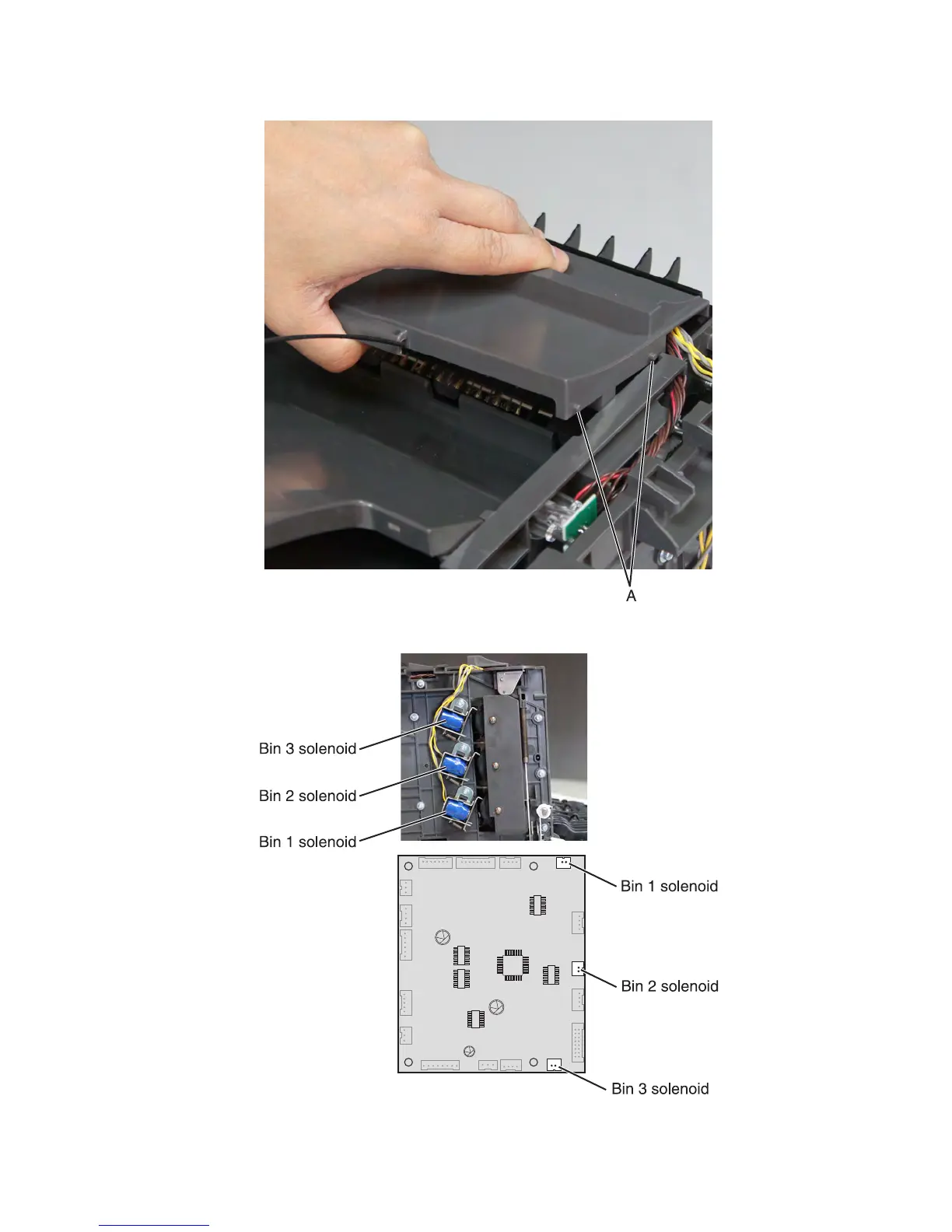

4 Lift the middle portion of the cover to release the tabs (A), then remove the cover.
5 Disconnect the solenoid cable (J2A, J2B, or J2C) from the controller board.
7463
Repair information
797
