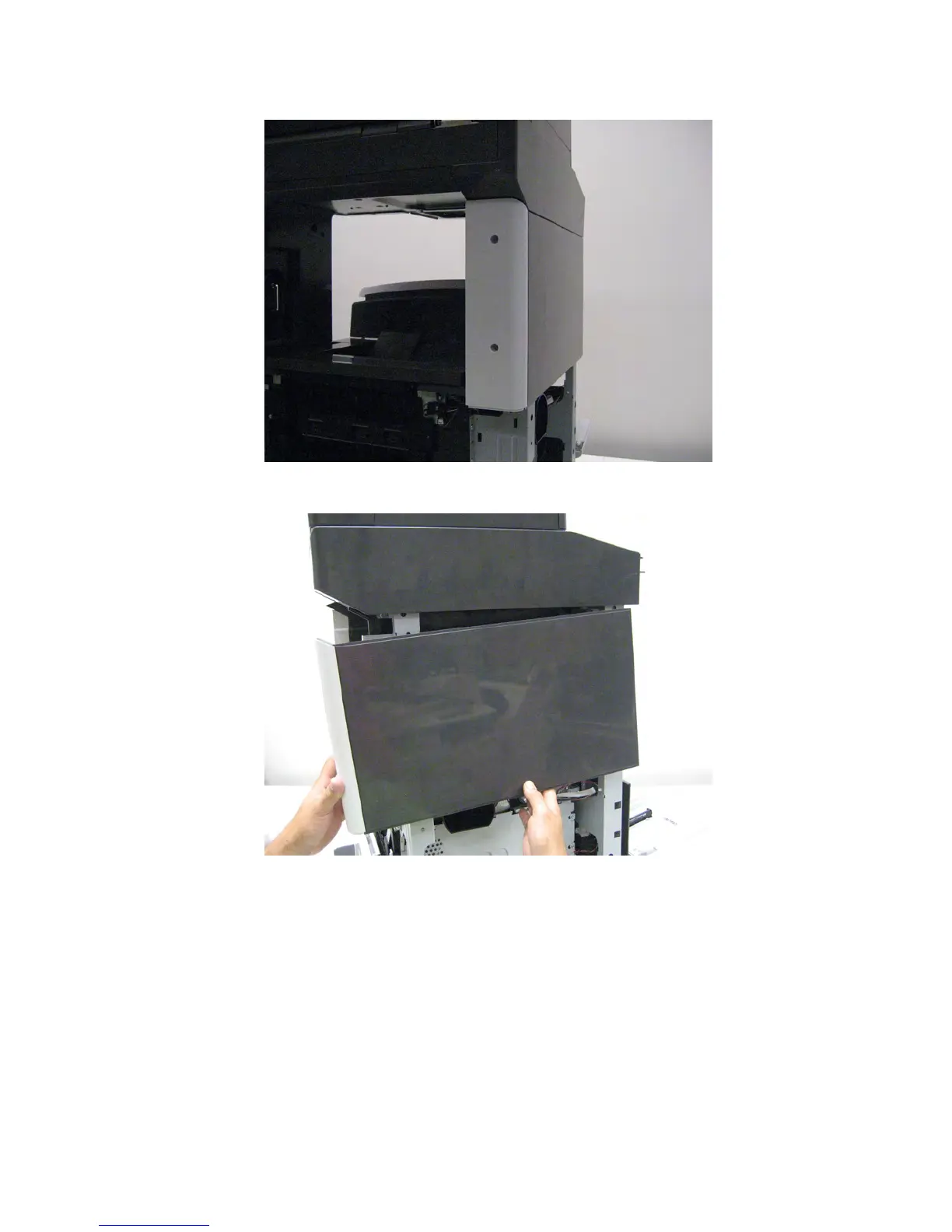

5 Remove the two screws (A) securing the column left outer cover to the machine.
6 Remove the column left outer cover.
Left cover removal (MX71x)
1 Open the front door.
2 Pull the media tray from the machine.
3 Raise the control panel to its uppermost position.
4 Open the rear door.
5 Detach the controller board access cover.
