Lexmark MX71 Series - Page 51

5 Detach the controller board access cover.
6 Remove the rear lower cover. See “Rear lower cover removal” on page 551.
7 Remove the top cover. See “Top cover removal” on page 561.

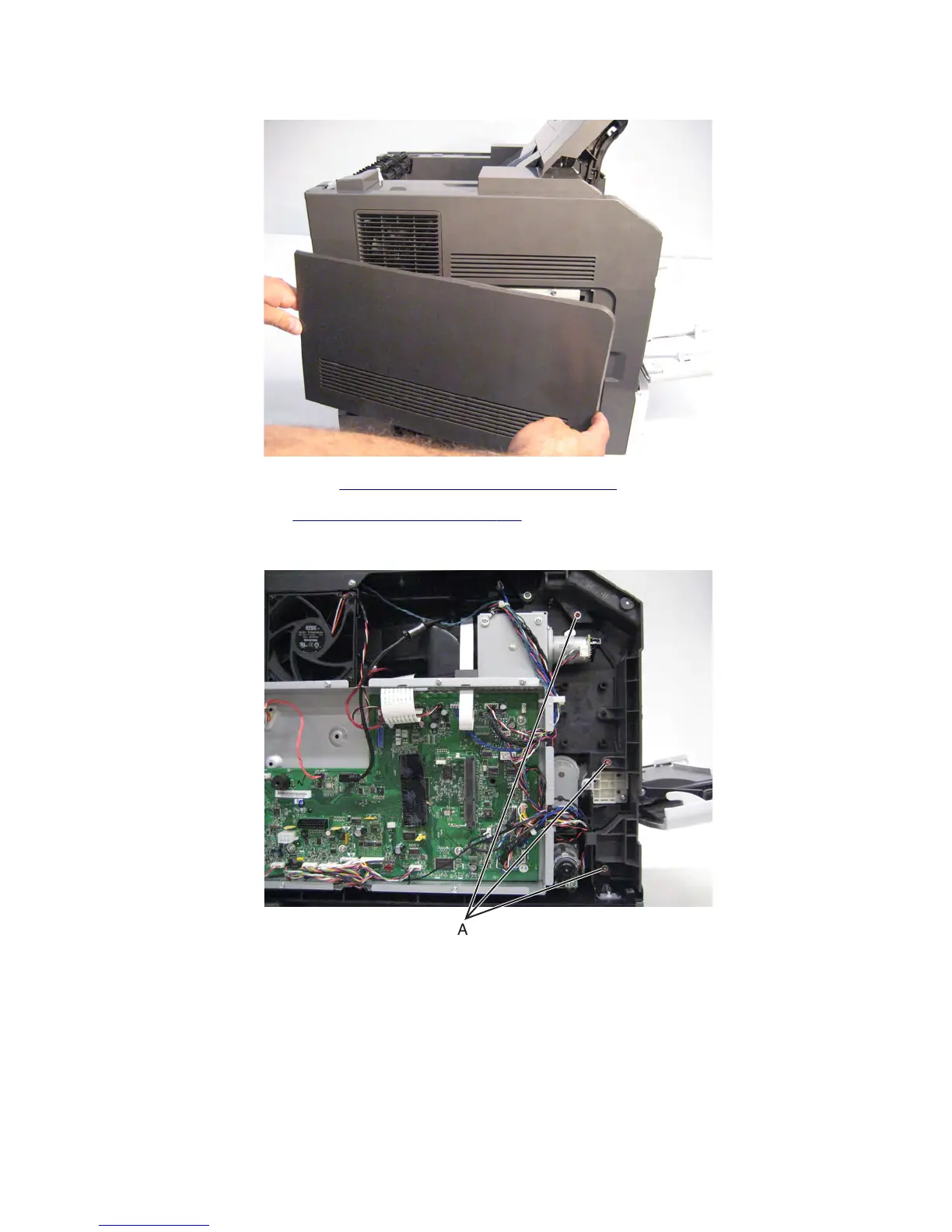

8 Remove the three screws (A) securing the left inner cover to the machine.
7463
Repair information
421
