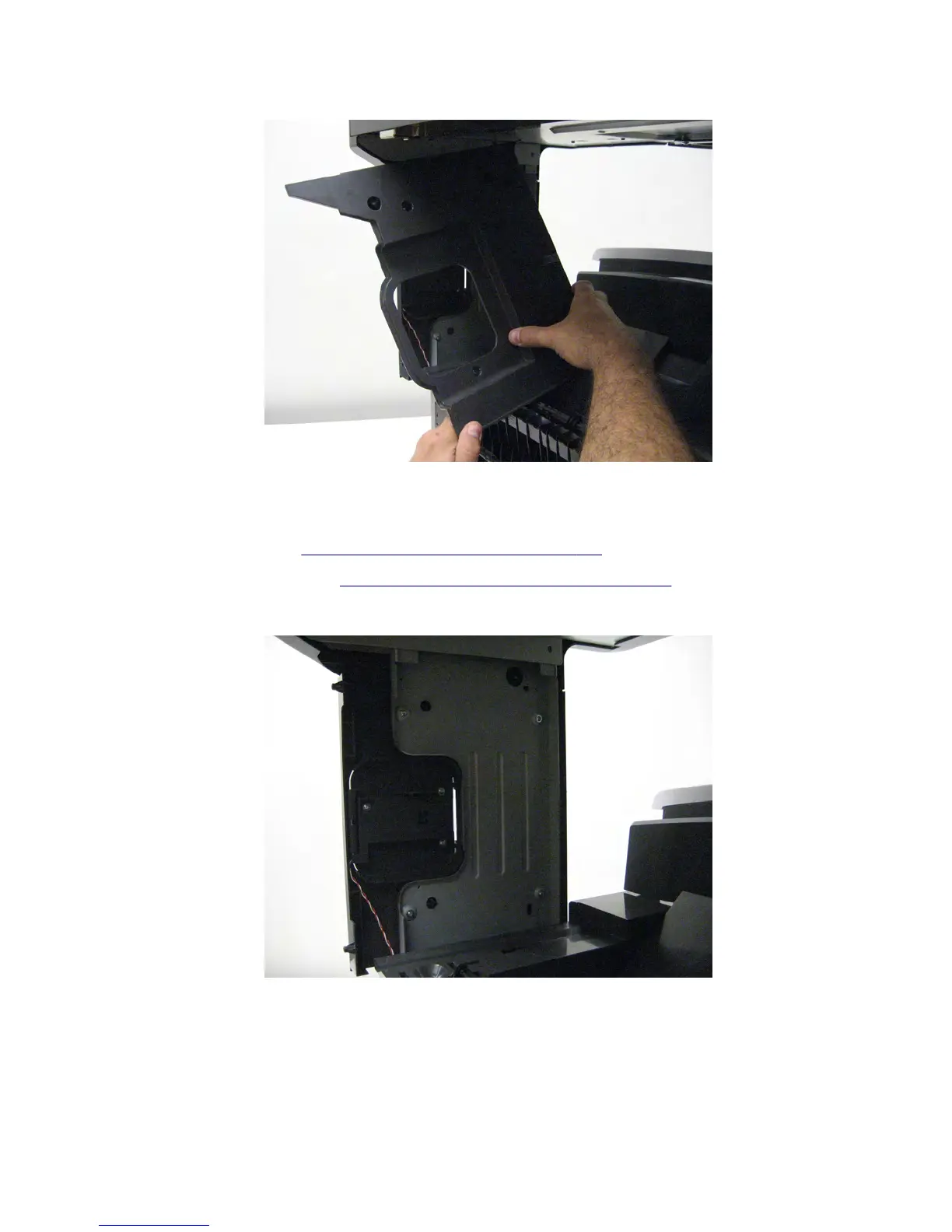

7 Remove the column right inner cover.
Column right outer cover removal
1 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
2 Remove the right inner cover. See “Column right inner cover removal” on page 435.
3 Remove the four screws (A) securing the column right outer cover to the machine.
7463
Repair information
437
