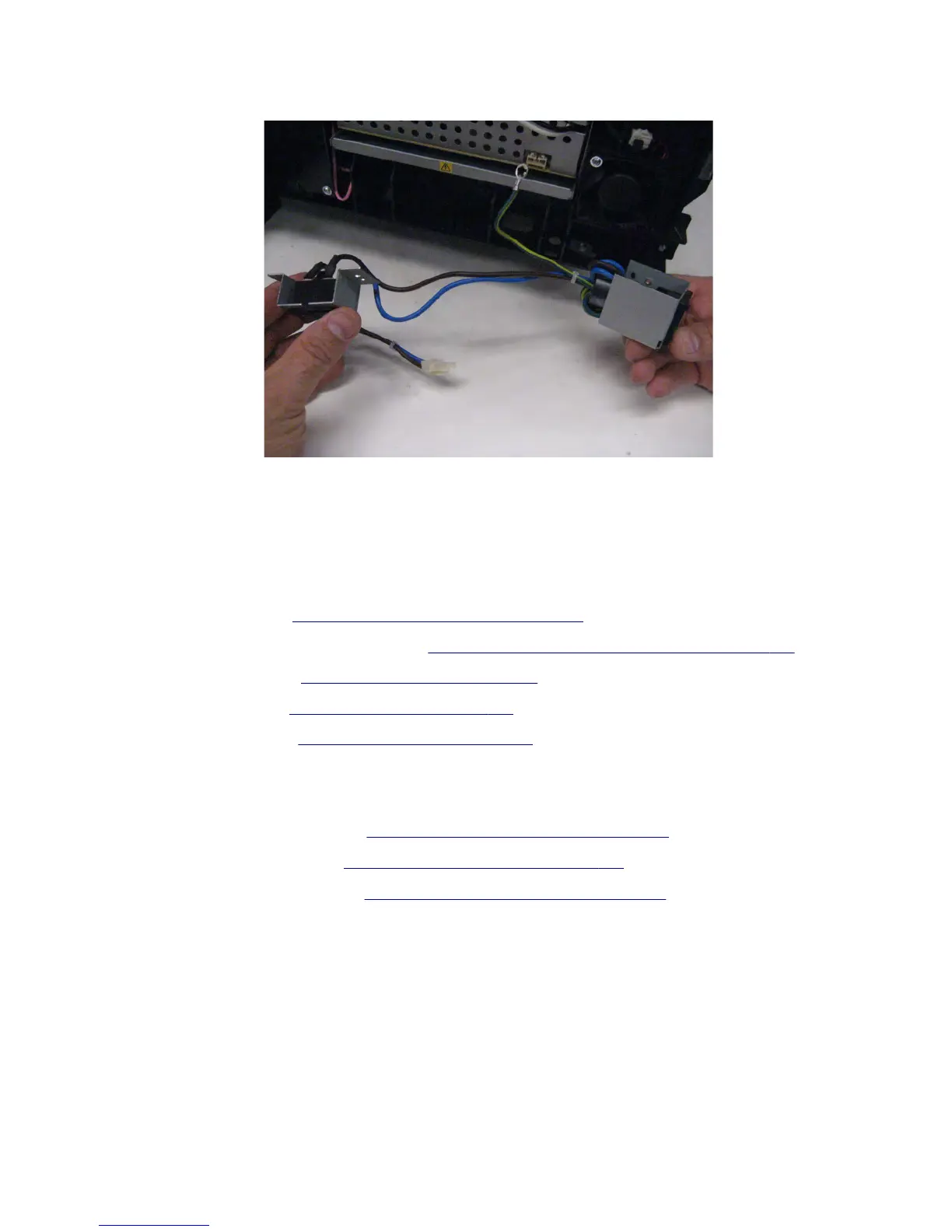

8 Remove the power switch.
Front side removals
Duplex exit diverter removal
1 Remove the left cover. See “Left cover removal (MX71x)” on page 416.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 424.
3 Remove the media tray. See “Media tray removal” on page 538.
4 Remove the MPF tray. See “MPF tray removal” on page 472.
5 Remove the front door. See “Front door removal” on page 453.
6 Remove the toner cartridge.
7 Remove the imaging unit.
8 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 465.
9 Remove the media turn guide. See “Media turn guide removal” on page 462.
10 Remove the media vertical guide. See “Media vertical guide removal” on page 463.
7463
Repair information
451
