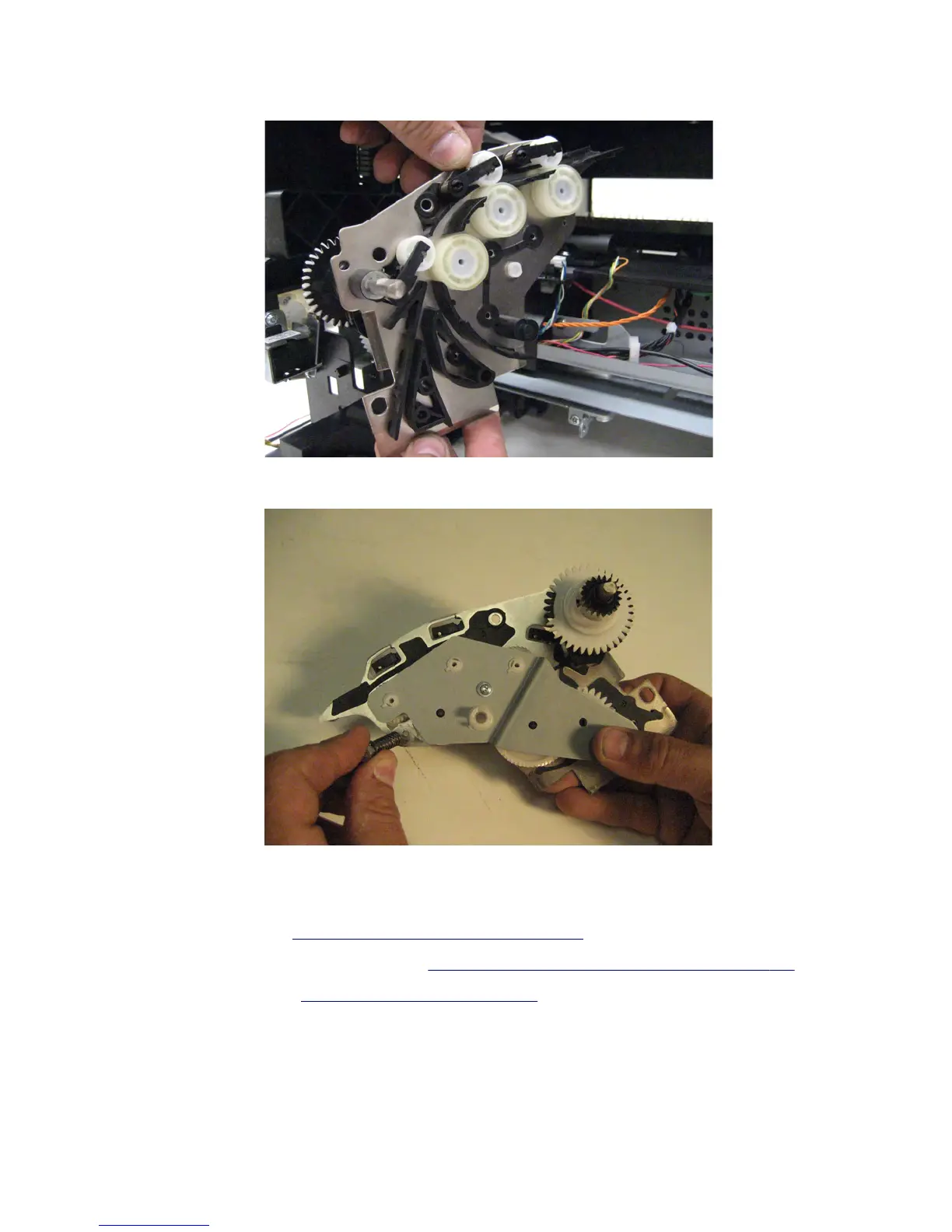

17 Gently detach the media aligner roller.
Warning—Potential Damage: When removing the media aligner, ensure that you retain the attached spring.
Media turn guide removal
1 Remove the left cover. See “Left cover removal (MX71x)” on page 416.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 424.
3 Remove the media tray. See “Media tray removal” on page 538.
4 Open the control panel door.
5 Remove the toner cartridge.
6 Remove the imaging unit.
7463
