Lexmark MX810de - Tilting Display Removal (7-Inch and 10-Inch)

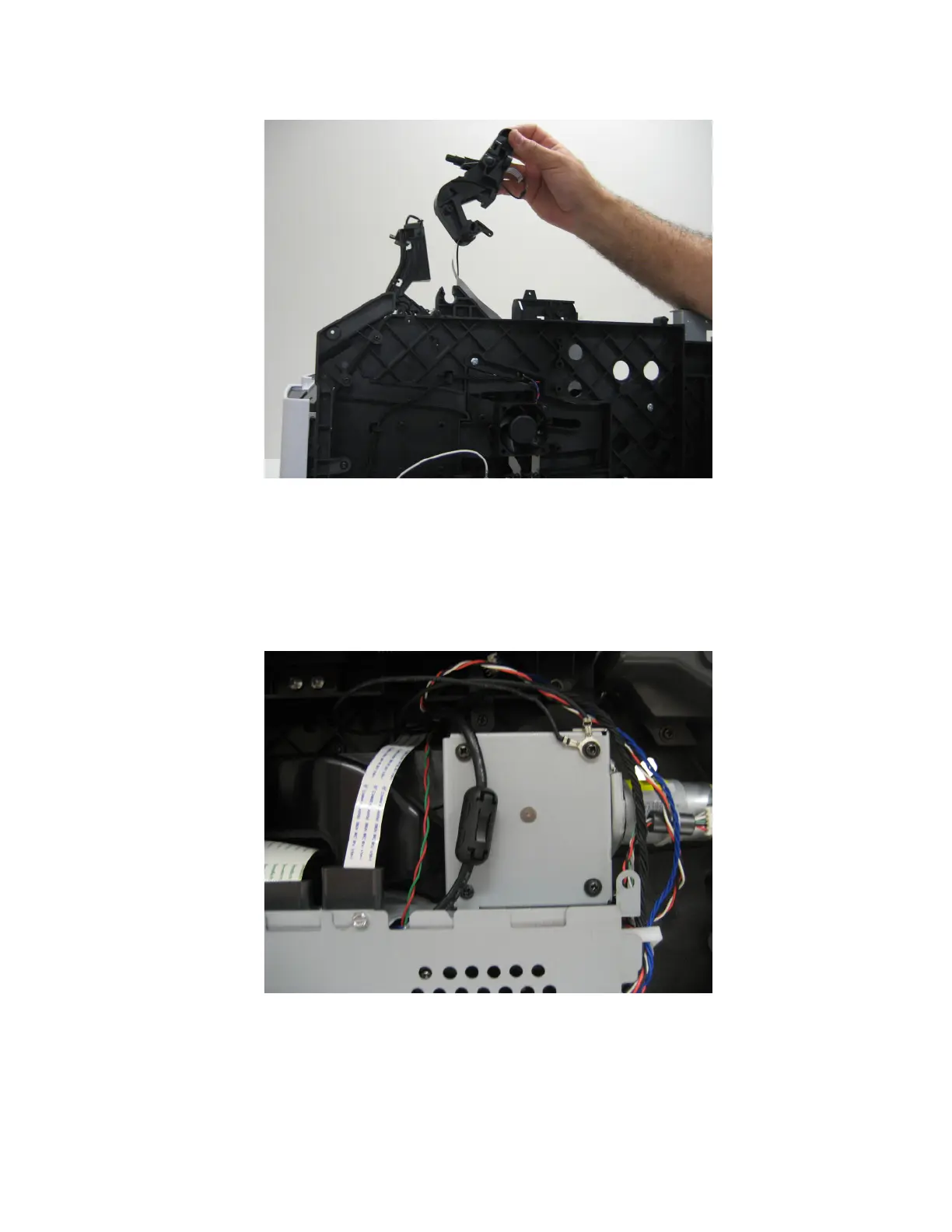

15 Remove the right control panel hinge.
Tilting display removal (7‑inch and 10‑inch)
1 Remove the control panel front cover. See “Control panel front cover removal” on page 426.
2 Remove the control panel right bezel.
3 Remove the screw (A) securing the cover to the control panel.
7463
Repair information
438
