Lexmark MX810de - ADF Push Button Switch Sensor Removal

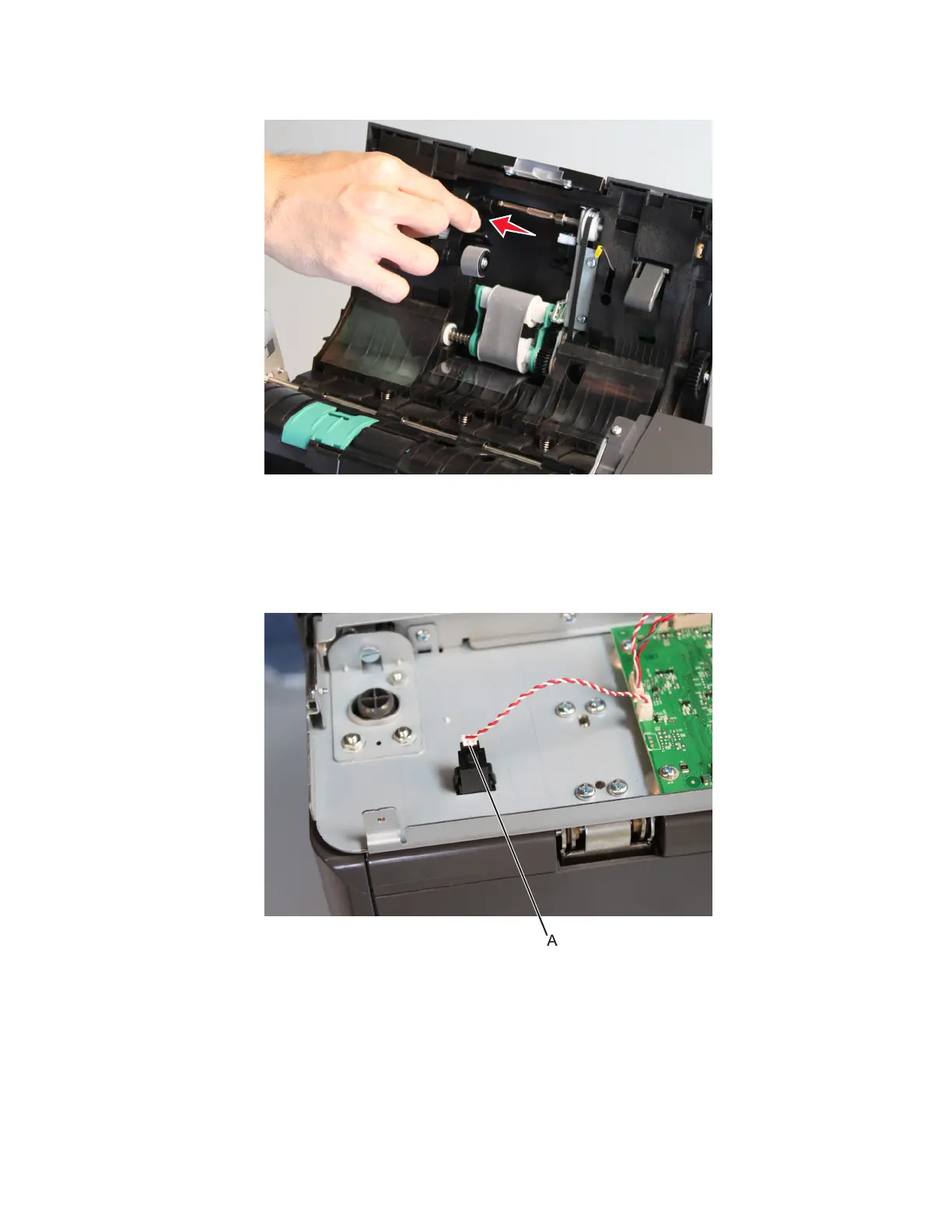

4 Slide the pick roller to remove.
ADF push button switch sensor removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 470.
2 Remove the cable (A) attached to the push button switch sensor.
7463
Repair information
469
