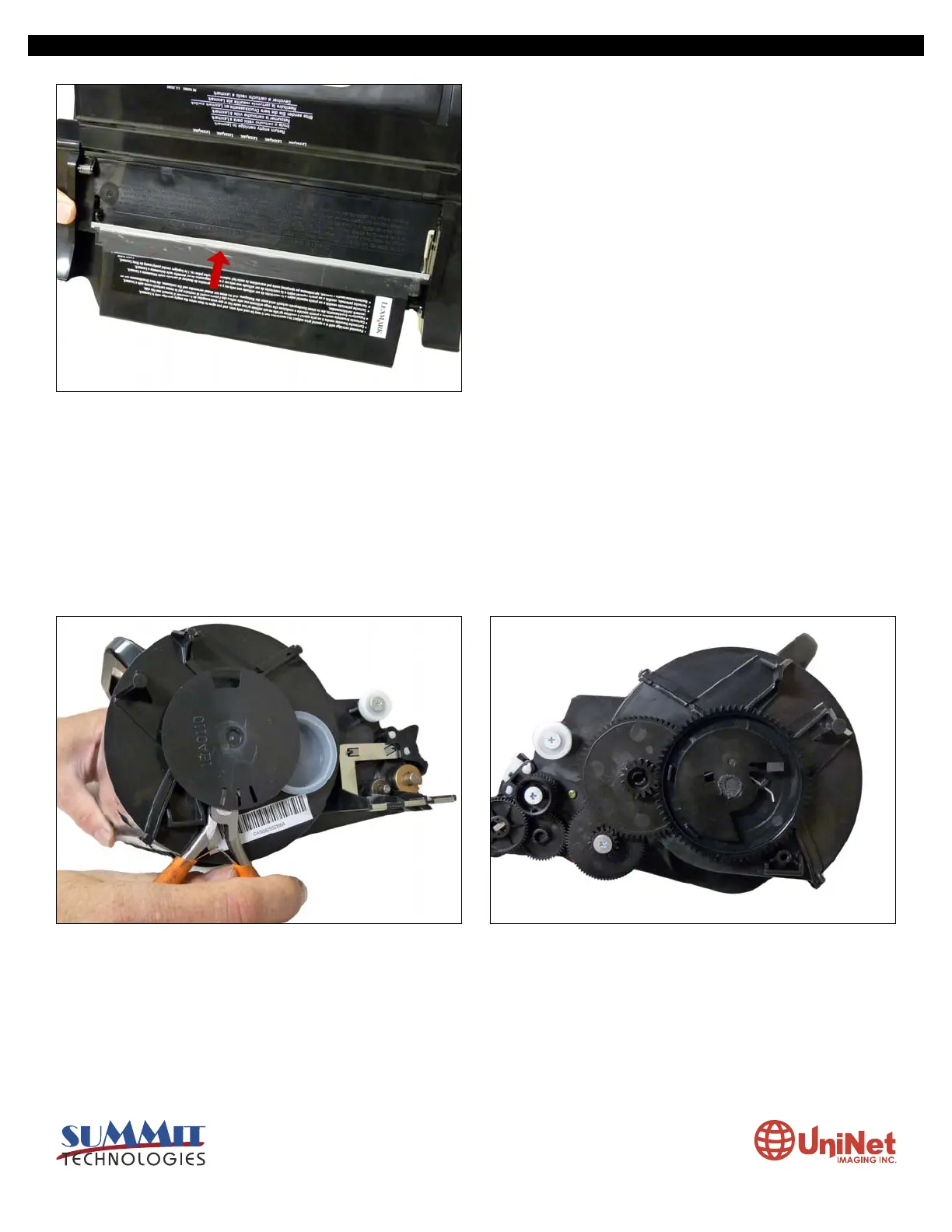

12. Place a piece of clear tape along the edge of the wiper
blade. If the tape does not stick well, the area should be
cleaned with alcohol. It is very important to get a good seal
with the tape, otherwise the cartridge will leak. Trim away any
excess tape. Be careful not to allow any tape into the laser port
opening.
LEXMARK T650 SERIES • TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS
3232 West El Segundo Blvd., Hawthorne, California 90250 USA • Ph +1 424 675 3300 • Fx +1 424 675 3400 • techsupport@uninetimaging.com • www.uninetimaging.com
© 2009 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only. UniNet Imaging does not warrant downloaded information.
13. On the supply hopper, take a pair of needle nose pliers and gently pry off the encoder wheel. Make sure you pry it off from
the center shaft so that the wheel does not become damaged. Also take great care to work the wheel off. If it is pulled straight
off, the shaft may pull through the clutch gear on the opposite side of the shaft. Place the wheel in a safe place. Remember, this
wheel tells the cartridge what type of cartridge it is: Prebate or Non-Prebate. The chip is what tells the machine what type of yield
the cartridge has. If this wheel becomes damaged, it must be replaced.
