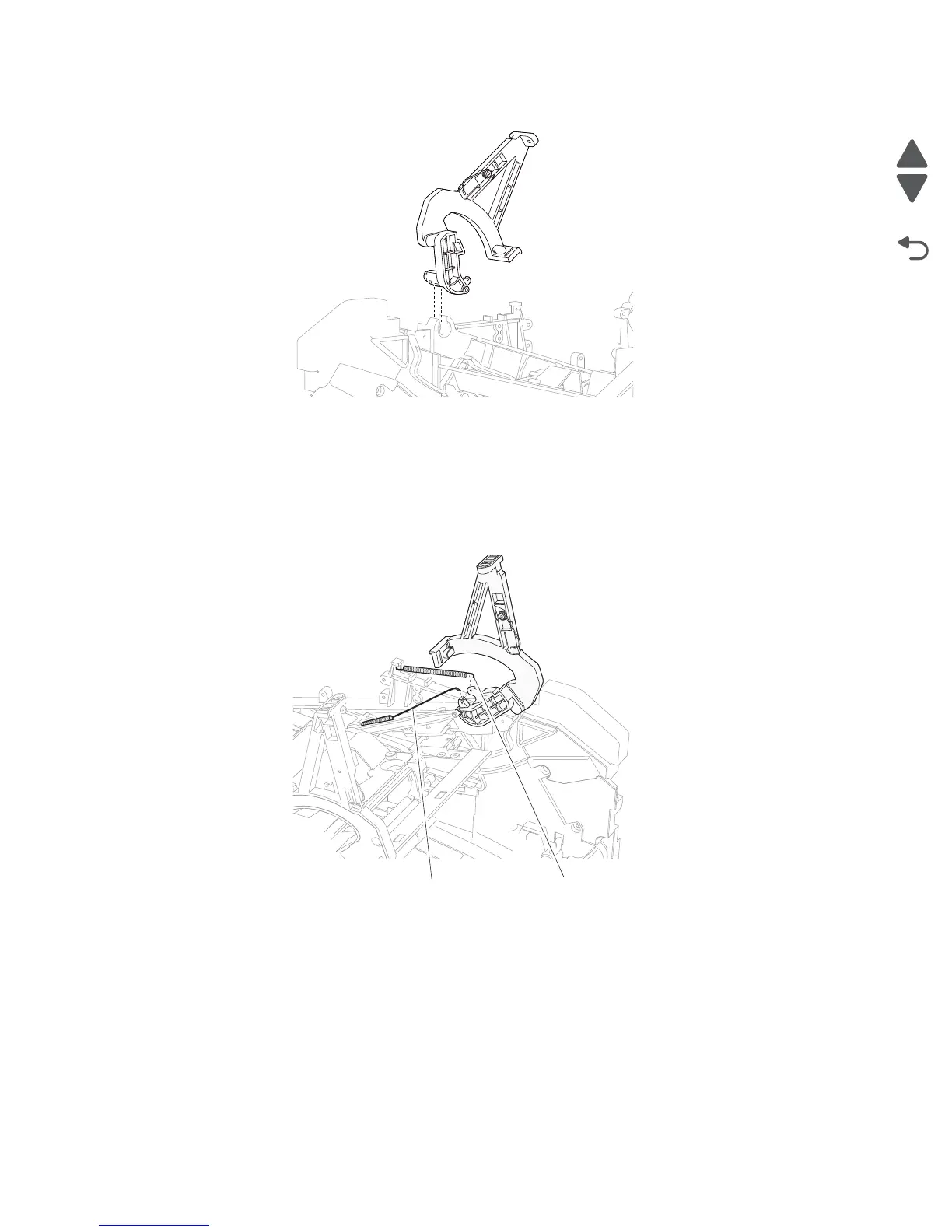

10. Remove the operator panel hinge assembly, left.
Operator panel hinge assembly, right removal (T650, T652, T654)
1. Remove the operator panel door assembly. Go to “Operator panel door assembly removal (T650, T652,
T654)” on page 4-43.
2. Detach the spring (A) from the operator panel hinge assembly, right.
3. Detach the spring (B) from the operator panel hinge assembly, right.
4. Remove the E-clip (C) from the operator panel hinge assembly, right.
B
A
