Lexmark X654DE Service Manual

Diagnostic aids 3-79
7462
Go Back
Previous
Next

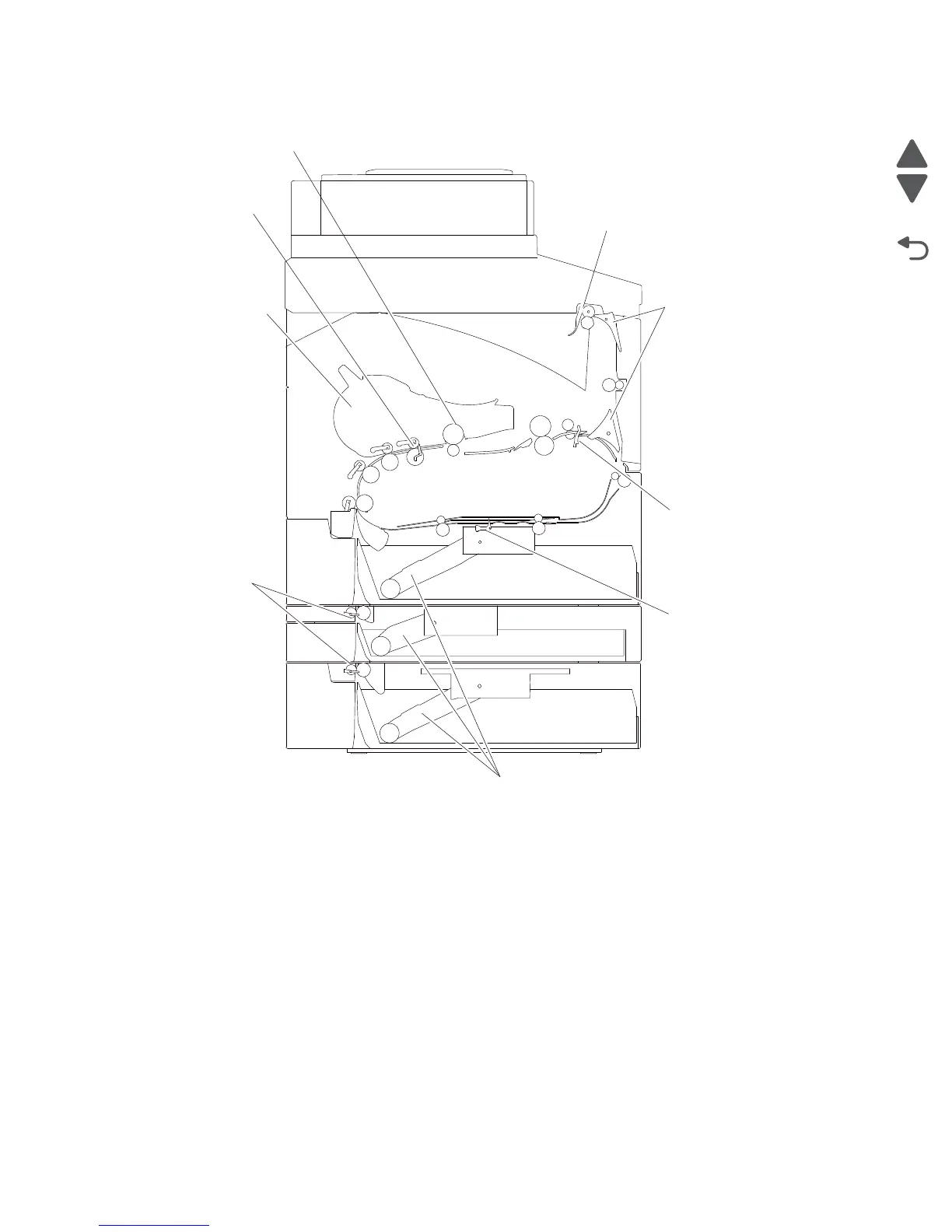

Model X658 paper path rolls and sensors
Functions of main components
When the 250 or 550 sheet input trays are installed under the printer, additional trays are available.
Media tray assembly
It is necessary to adjust the media tray rear guide and media tray side guide of the media tray assembly to
match the media size.
Rear media guide
The rear media tray guide assembly can be adjusted to different media sizes by moving it to the front or rear.
The rear guide should come into contact with the media and hold it in position.
Side guide
PC cartridge
Sensor (input)
PC drum
Standard bin full actuator
and sensor (standard bin full)
Diverter
Sensor
(duplex input)
Sensor (fuser output)
Sensor (narrow media)
Pick arm
assembly
Sensor (option
pass through)

Lexmark X654DE Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.5 s
Print speed (black, normal quality, A4/US Letter)	53 ppm
Duplex print speed (black, normal quality, A4/US Letter)	36 ppm
Copy speed (black, normal quality, A4)	53 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	650 sheets
Maximum input capacity	3200 sheets
Auto document feeder (ADF) input capacity	75 sheets
Dimensions (WxDxH)	548 x 611 x 755 mm
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Color all-in-one functions	scan, n
Compatible operating systems	Apple Mac OS X Apple Mac OS 9.x Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 Microsoft Windows 2000 Server Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Microsoft Windows 7 Novell Open Enterprise Server, Netware + NDS iPrint / Novell Distributed Print Services (NDPS), Novell NetWare 5.x, 6.x iPrint / Novell, Distributed Print Services (NDPS) Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1 IBM iSeries / IBM AS/400 Systems + TCP/IP + OS/400 V3R1
Internal memory	256 MB
Sound power level (standby)	29 dB
Sound pressure level (printing)	56 dB
Sound pressure level (scanning)	55 dB
Envelopes sizes	9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Security algorithms	LEAP, MD5, PEAP
Supported network protocols (IPv4)	TCP/IP IPv4, IPX/SPX, AppleTalk, LexLink (DLC), TCP/IP IPv6, TCP, UDP
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Sustainability certificates	ENERGY STAR
Certification	CE Class A, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class A, EN 55024, CISPR 22 Class A, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class A, AS/NZS 60950-1, EK Mark, KCC MIC Mark, CCC Class A, UL AR, CS, TÜV Rh, CNC, ANATEL, SUBTEL, MTC, MOC, TK, TEC, SIRIM, ICASA, R&TTE ETSI ES 203 021, -2, -3
Maximum duty cycle	275000 pages per month
Page description languages	PCL 5e, PCL 6, PDF 1.6, PostScript 3, PPDS, xHTML
Operating altitude	0 - 3048 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Display diagonal	9 \
Market positioning	Business
