Diagnostic aids 3-71
7526

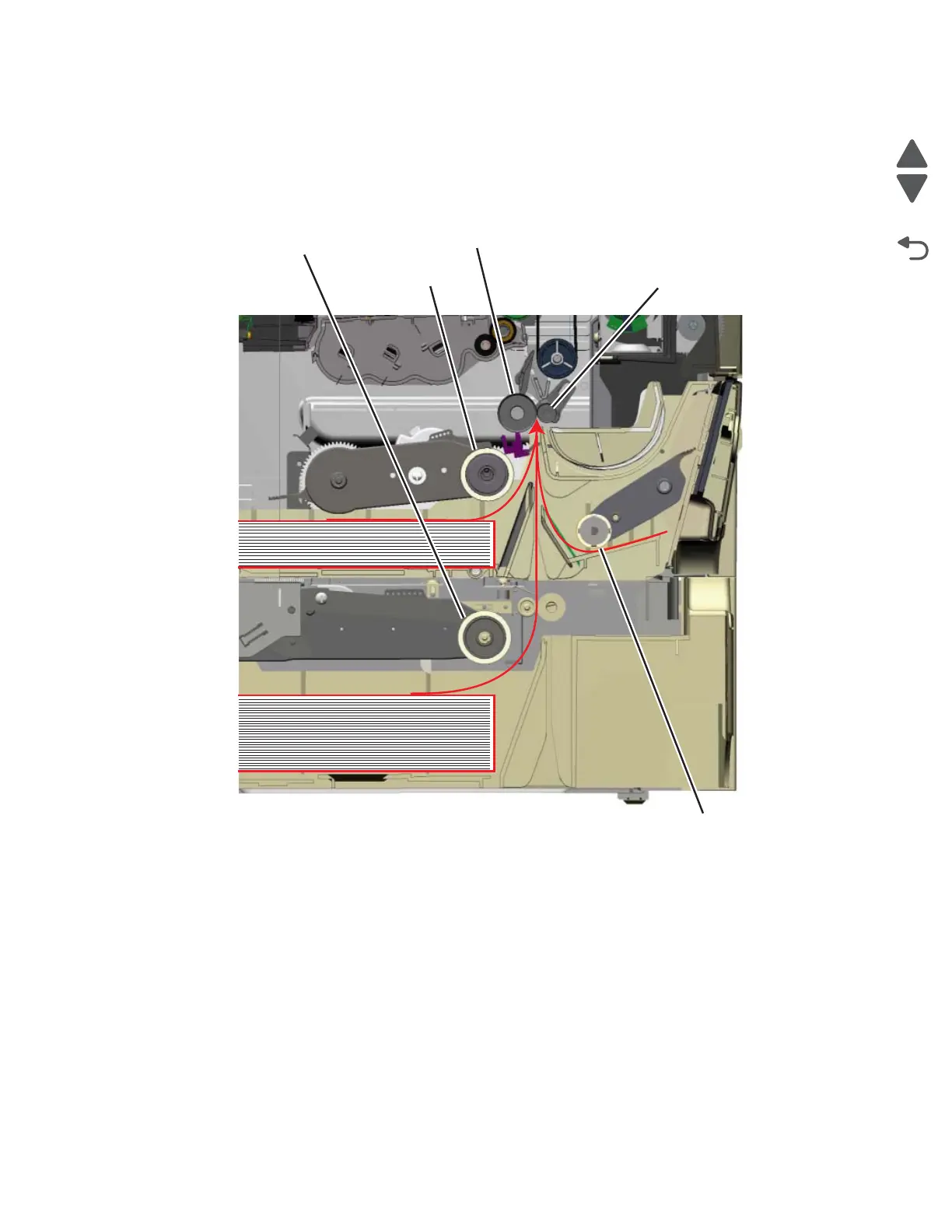

Print media transport
The print media is picked from the input source and fed to the bump aligner roll. The media movement is
detected by a sensor located in the paper pick mechanism. It does not matter where the media comes from
(Tray 1, Tray 2, or, the MPF); it will enter the electrophotographic process at the bump aligner drive. The bump
aligner motor drives the bump aligner roll which feeds the paper to the transfer belt.
500-sheet assembly
pick tire
Bump aligner roll
MPF pick tire
Pick tire
Backup aligner roll
