Lexmark X748de - Cartridge Motor 1;Fuser Cable Removal

4-54 Service Manual
7526
Go Back
Previous
Next

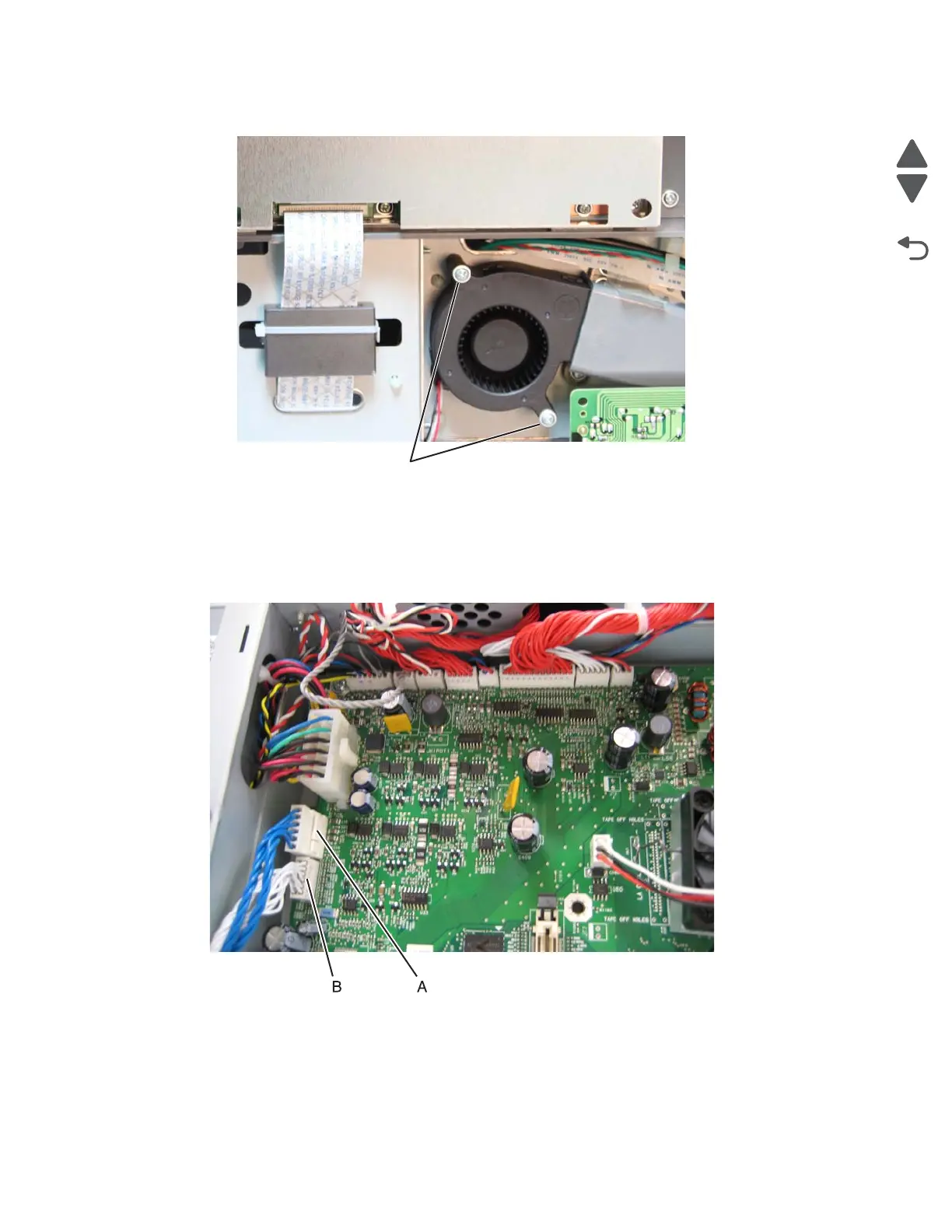

5. Remove the two screws (C).
6. Remove the cartridge cooling fan.
Cartridge motor 1/fuser cable removal
1. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-115.
2. Disconnect the connectors in JCARTP1 (A) and JCARTS1 (B) on the system board.
C
