Installation notes:

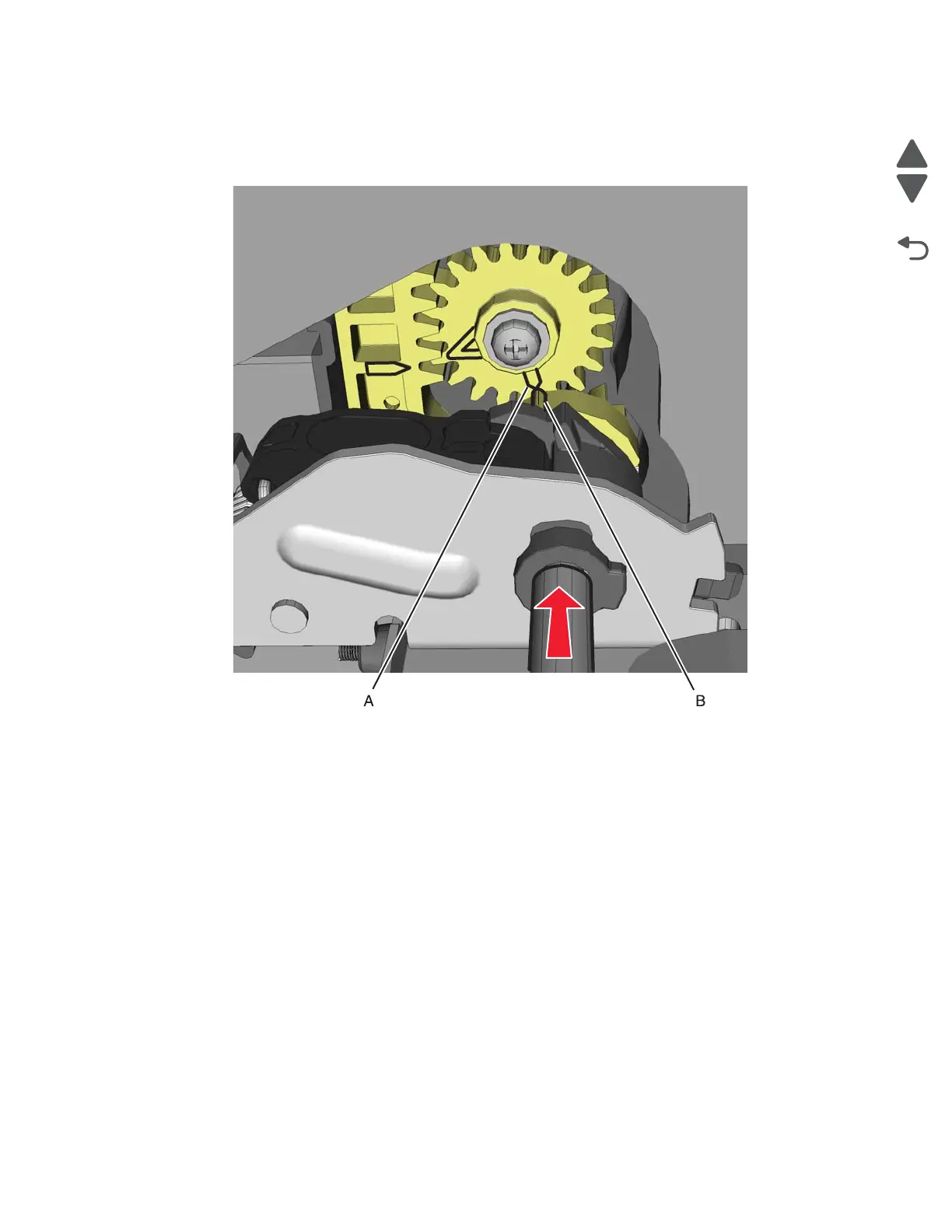

1. On the left side, align the mark on the idler gear (A) with the mark on the camshaft gear (B), and slide the
camshaft into place, meshing the gears on the left side.
