Repair information 4-229
7526
Go Back
Previous
Next

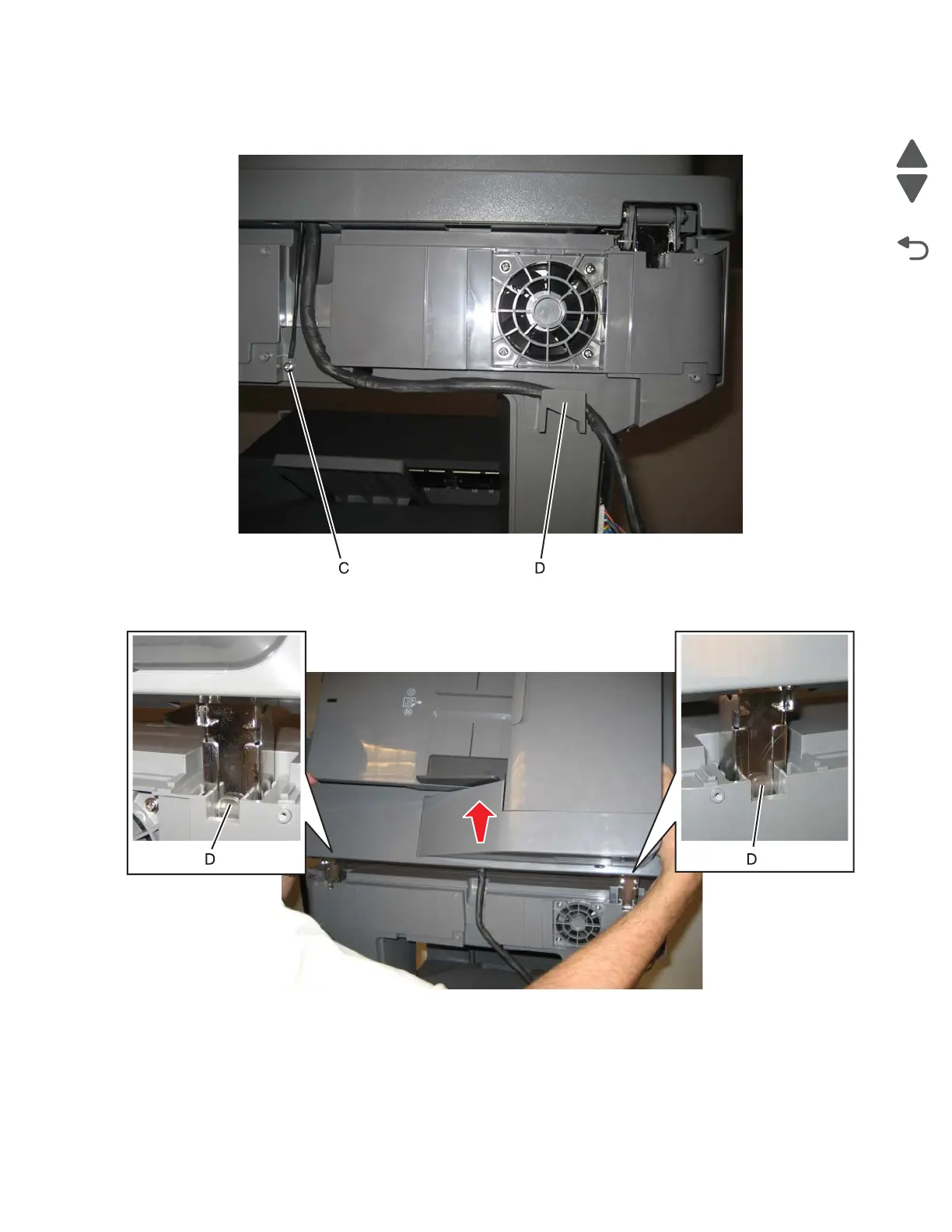

5. Remove the screw (C) that secures the ground cable.
6. Remove the cable from the cable restraint (D).
7. LIft the ADF until it has resistance, press the release tabs (D), and complete removing the ADF.
Note: It may be easier to release the tab closest to the left side first.
