4-3. Do-it-yourself maintenance
CT200h_U (OM76040U)

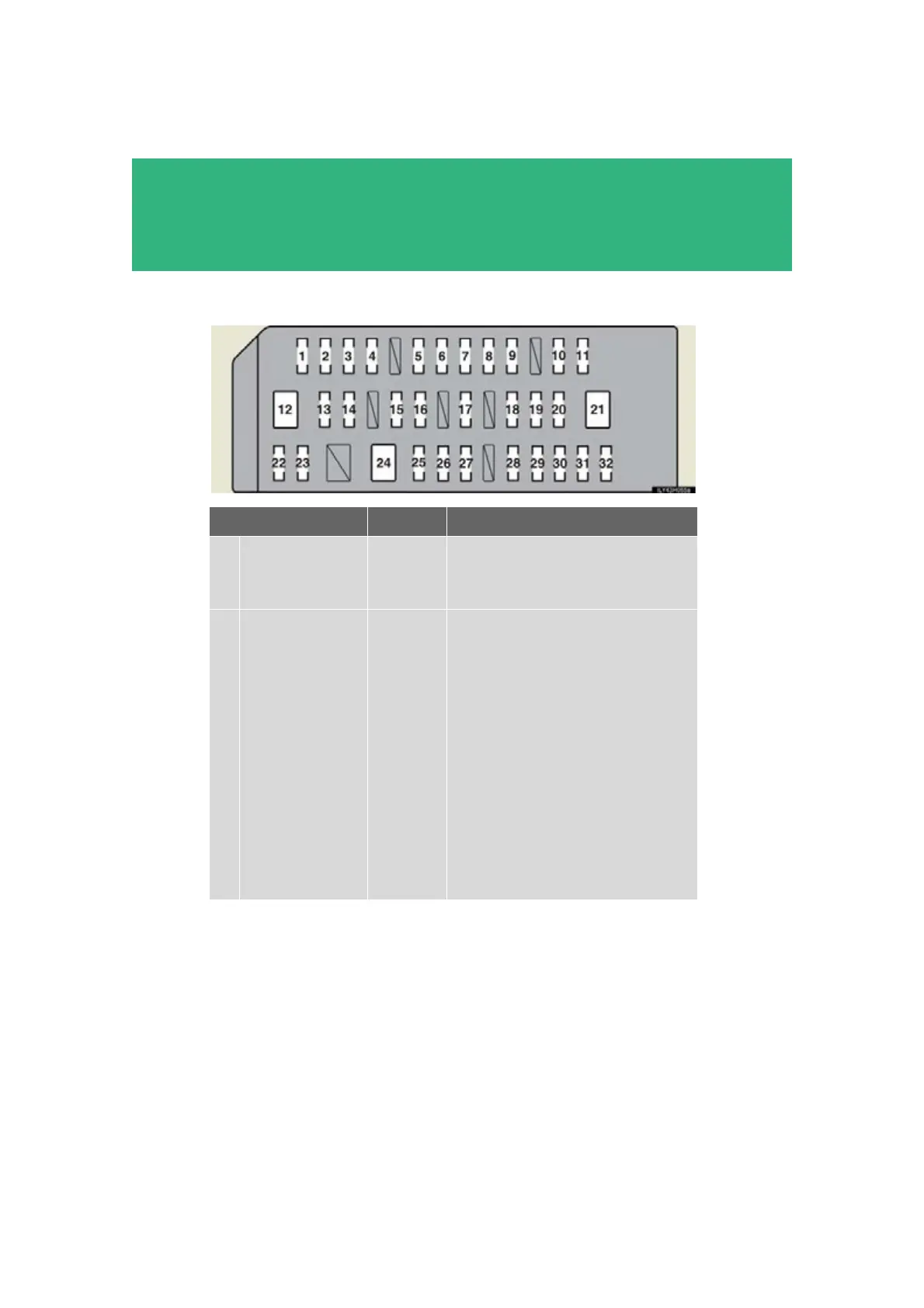

Left side instrument panel
Fuse Ampere Circuit
1
TA I L 10 A
Headlights (high beam), stop/tail
lights, license plate lights, parking
lights
2
PA N E L 10 A
Audio system, intuitive parking assist
switch, windshield wiper de-icer
switch, navigation system, fuel filler
door opener, glove box light, head-
light cleaner switch, emergency
flasher switch, air conditioning system,
outside rear view mirrors, driving
mode select switches, P position
switch, instrument panel light control
dial, shift position indicators, seat
heater switches, heated steering
wheel switch, pre-collision braking off
switch
