4-3. Do-it-yourself maintenance
4
Maintenance and care

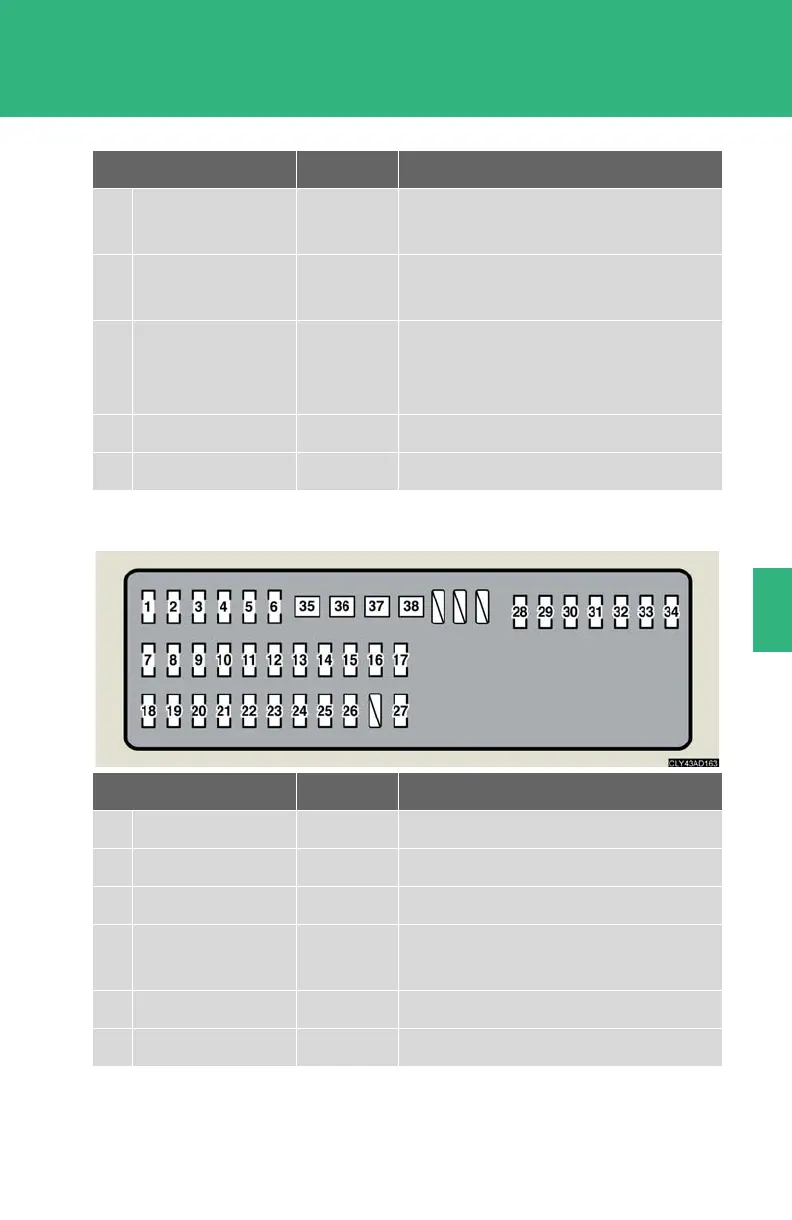

■ Engine compartment (type B fuse box)
Fuse Ampere Circuit
23
D-J/B B 40 A
D-DOOR 1, HAZ, D-DOOR 2,
STR LOCK, STOP, SECURITY
24
LUG J/B B 40 A
STOP LP 1, STOP LP 2, TAIL, E-PKB,
capacitor
25
P-J/B B 40 A
P DOOR 1, P RR DOOR, AM2,
RADIO NO.1, P-D/C CUT,
P DOOR 2, PMG, AMP
26
VGRS 40 A VGRS
27
BAT VB 30 A VSSR
Fuse Ampere Circuit
1
DEICER 25 A Windshield wiper de-icer
2
WIP 30 A Windshield wiper
3
ABS MAIN 2 10 A ABS, VSC, VDIM
4
IGCT 1 25 A
Smart access system with push-button
start
5
EPS ECU 10 A EPS
6
FR CTRL BAT 30 A Headlight high beams, horns
