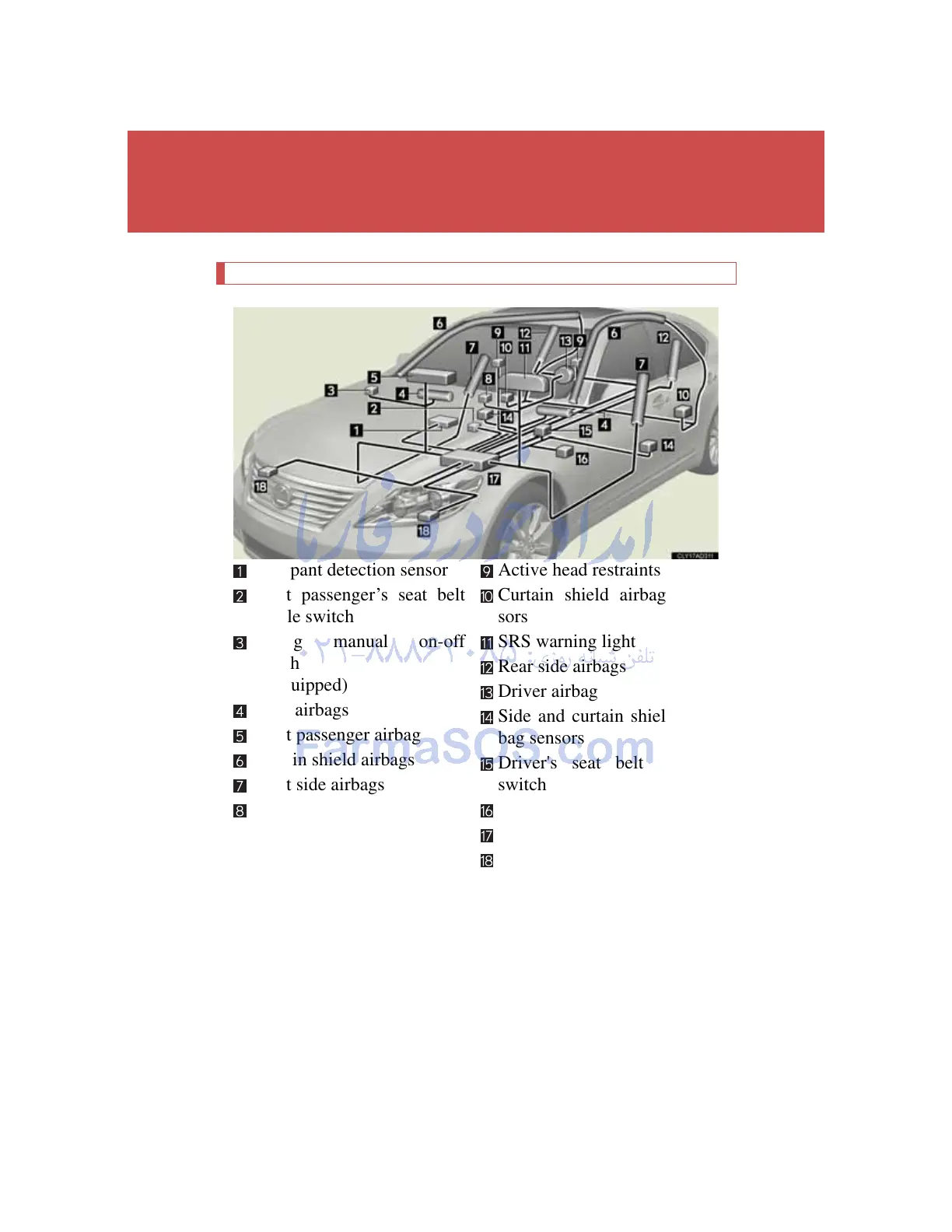

SRS airbag system components
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly.
The airbag sensor assembly consists of a safing sensor and an air-
bag sensor.
In certain types of severe frontal or side impacts, the SRS airbag
system triggers the airbag inflators. A chemical reaction in the
Occupant detection sensor
Front passenger’s seat belt
buckle switch
Airbag manual on-off
switch
(if equipped)
Knee airbags
Front passenger airbag
Curtain shield airbags
Front side airbags
SRS airbag on-off indicator
(if equipped)
Active head restraints
Curtain shield airbag sen-
sors
SRS warning light
Rear side airbags
Driver airbag
Side and curtain shield air-
bag sensors
Driver's seat belt buckle
switch
Driver's seat position sensor
Airbag sensor assembly
Front airbag sensors
To Next Page
