LEYBOLD Trivac L - Figure 4. Dimension Drawing - TRIVAC D 90 L

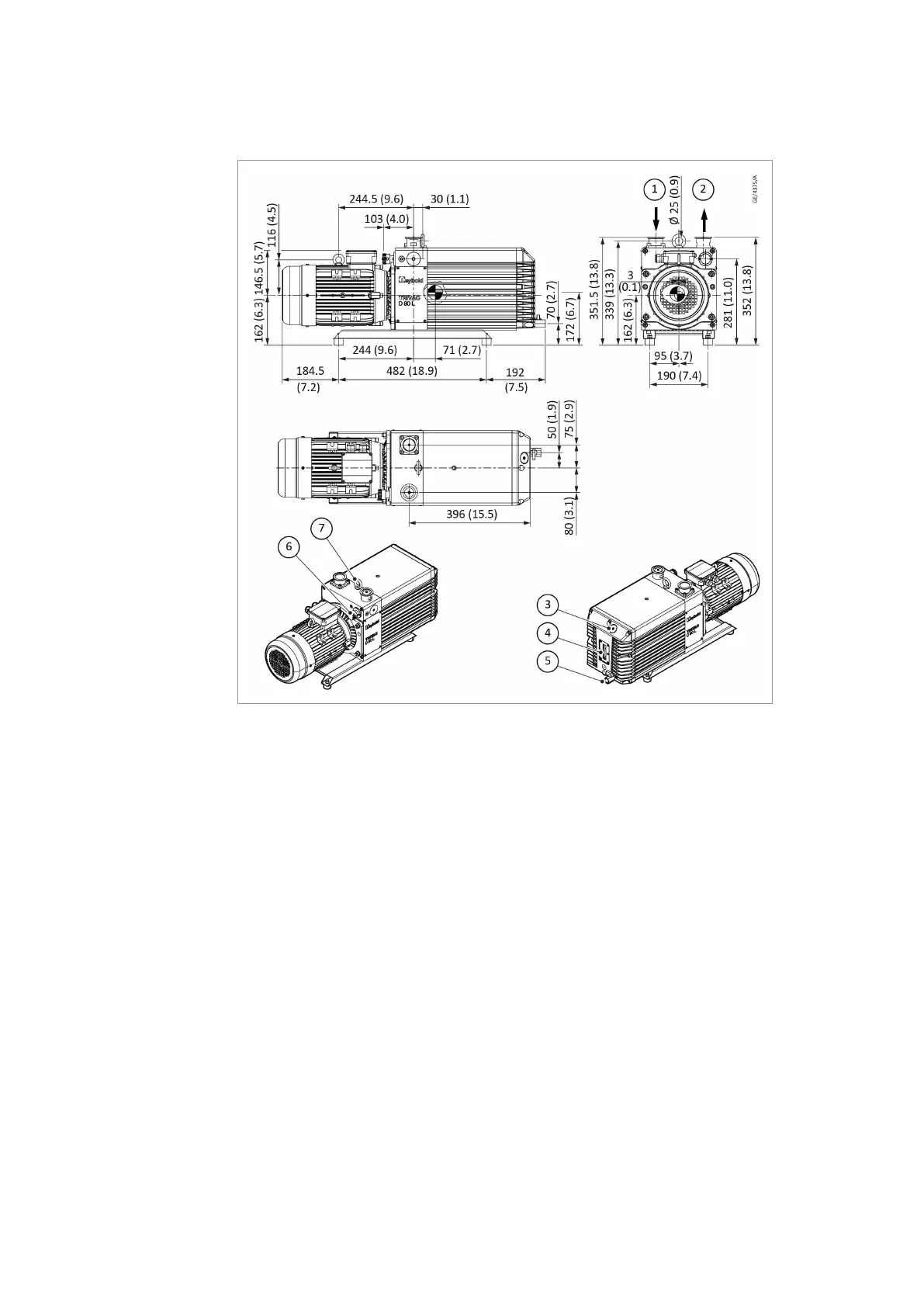

Figure 4. Dimension drawing - TRIVAC D 90 L
All dimensions are given in mm (inch).
1. Inlet port 2. Exhaust port
3. Oil lling plug 4. Oil sight glass
5. Oil drain valve 6. Gas ballast
7. Lifting lug
*
1. Inlet port 2. Exhaust port
3. Oil lling plug 4. Oil sight glass
5. Oil drain valve 6. Gas ballast
7. Lifting lug
*
* For variants with motor
300956027_002_A0 - 03/2022 - © Leybold
18
Technical data
