DOWNROD-STYLE FAN MOUNTING
8
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the ball on the
downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
2.

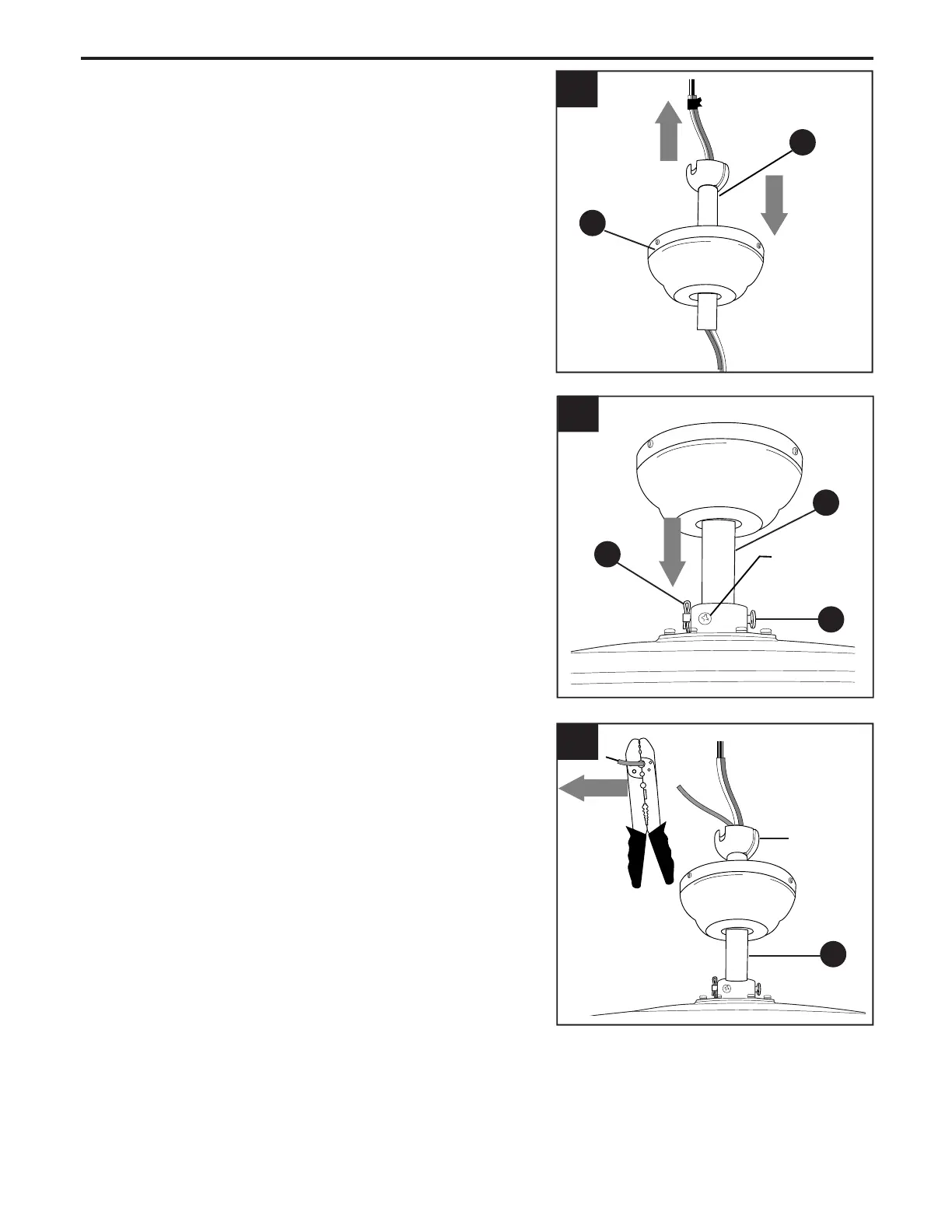

Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) up through downrod
(A).
3.
3
A
L
K
Ball
A
4
Slip downrod (A) into yoke, align holes and
re-install pin (K) and clip (L). Tighten set screws
in yoke and then tighten nuts on the set screws.
Set Screw
and Nut
2
B
A
To Next Page
