9
PART DESCRIPTION QUANTITY
A Lid 1
B Brand* 1
C Temperature Gauge 1
D Lid Handle 1
E Lid Handle Support 2
F Top Hinge 2
G Bottom Hinge 2
H Warming Grid 1
I Cooking Grid 1
J Charcoal Grid 1
K Heat Plate 1
L 1
M Bottom Bowl 1
PART DESCRIPTION QUANTITY
N Lock 1
O Burner 1
P Electrode* 1
Q Heat Shield 1
R Regulator/Control Knob 1
S Handle Support A 2
T Side Handle 2
U Handle Support B 1
V Leg A 2
W Leg Brace 2
X Leg B 2
Y Handle Support C* 1
Z Igniter* 1
M4 x 12
Screw
Qty. 2
M5 x 12
Bolt
Qty. 16
M6 x 8
Screw
Qty. 1
M6 x 12
Screw
Qty. 10
ST4.2 x 12
Screw
Qty. 2
M6 x 25
Screw
Qty. 4
M5
Nut
Qty. 8
M6
Nut
Qty. 4
Ø4
Washer
Qty. 2
Ø5
Washer
Qty. 16
Ø6
Washer
Qty. 11
Ø4
Lock
Washer
Qty. 2
Ø5
Lock
Washer
Qty. 16
Ø6
Lock
Washer
Qty. 11
#2
Philips Head Screwdriver
Qty. 1
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Estimated assembly time: 35 minutes by one person.
Tools required for assembly: Philips screwdriver and wrench included.
PACKAGE CONTENTS

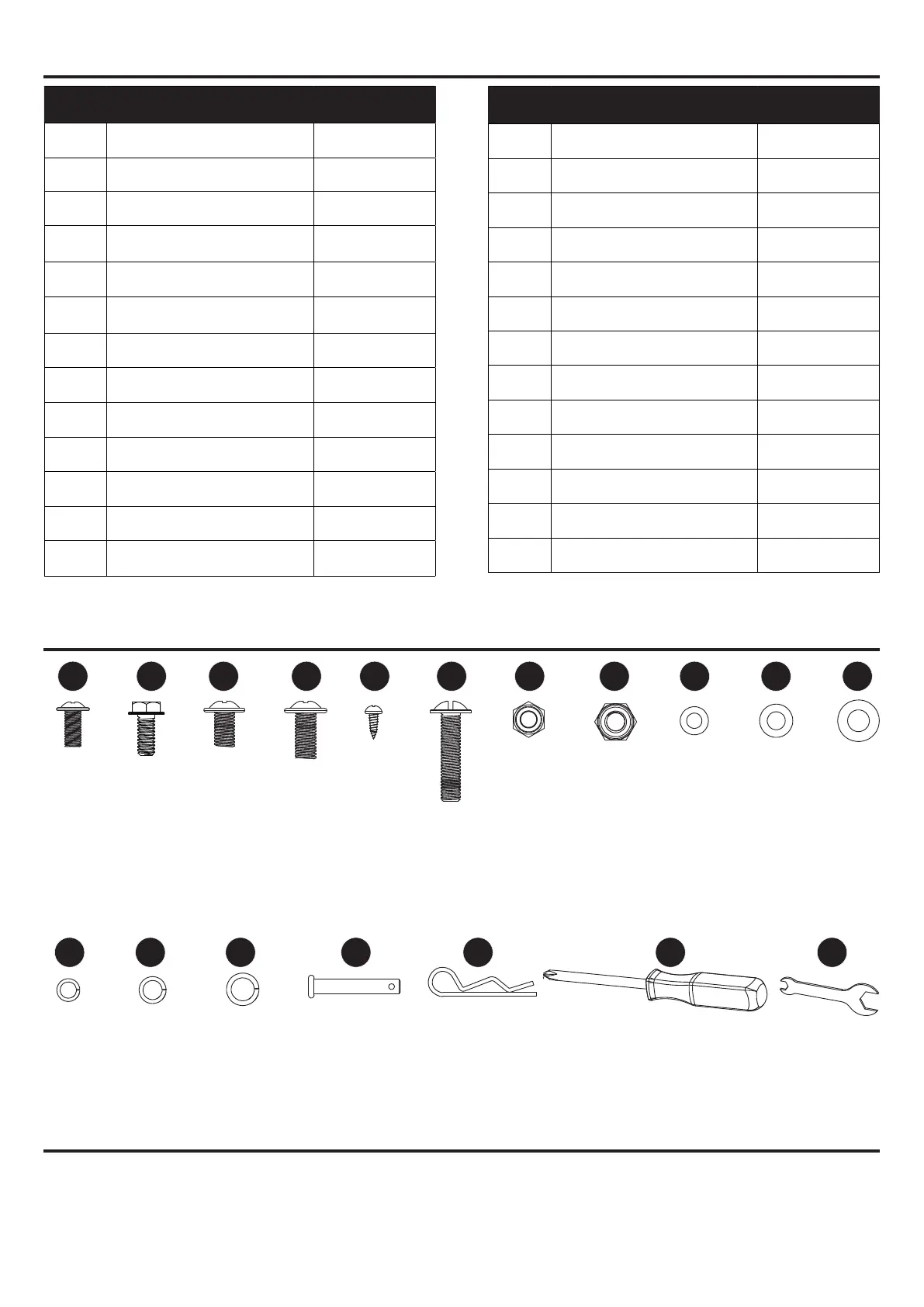

HARDWARE CONTENTS
Preparation
Ø5 x 30
Pin
Qty. 2
Ø1.4 x 30
Cotter Pin
Qty. 2
M5-M6
Wrench
Qty. 1
* Pre-assembled
AA
LL MM NN OO PP QQ RR
BB CC DD EE FF GG HH II JJ KK
