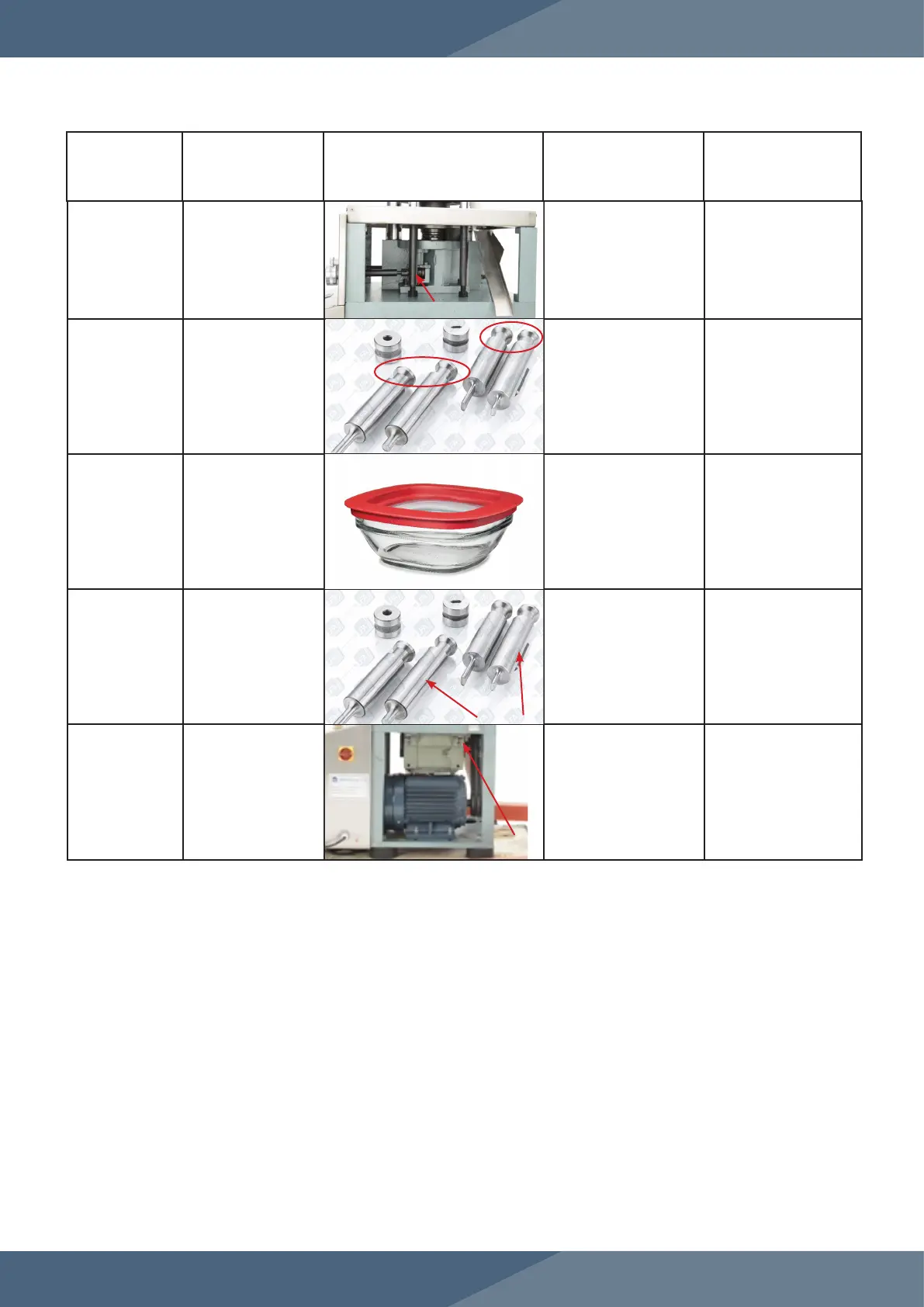

Fill Adjustment
Gear
Gear on Fill
Adjustment shaft
(open righthand side
panel door)
Inspect after every 3
months or 100,000
tablets and apply if dry
If old, gritty grease is
present, clean before
lubricating.
NLGI Grade 2
Tooling Heads
Heads of Upper
Punches and Lower
Punches
Inspect and apply when
dry.
NLGI Grade 1
Tooling Air-tight container
Cover and store in oil
after cleaning.
Mineral oil
Tooling Barrels
The main shaft of the
Upper Punches and
Lower Punches
Lubricate every time
Tooling is installed in
the press.
SAE 10
Gearbox
On top of Gearbox
through the shaft's
bore
Visually inspect and
apply when needed.
460 Grade Worm Gear
Oil
Part Location Image Frequency Type of Lubricant
