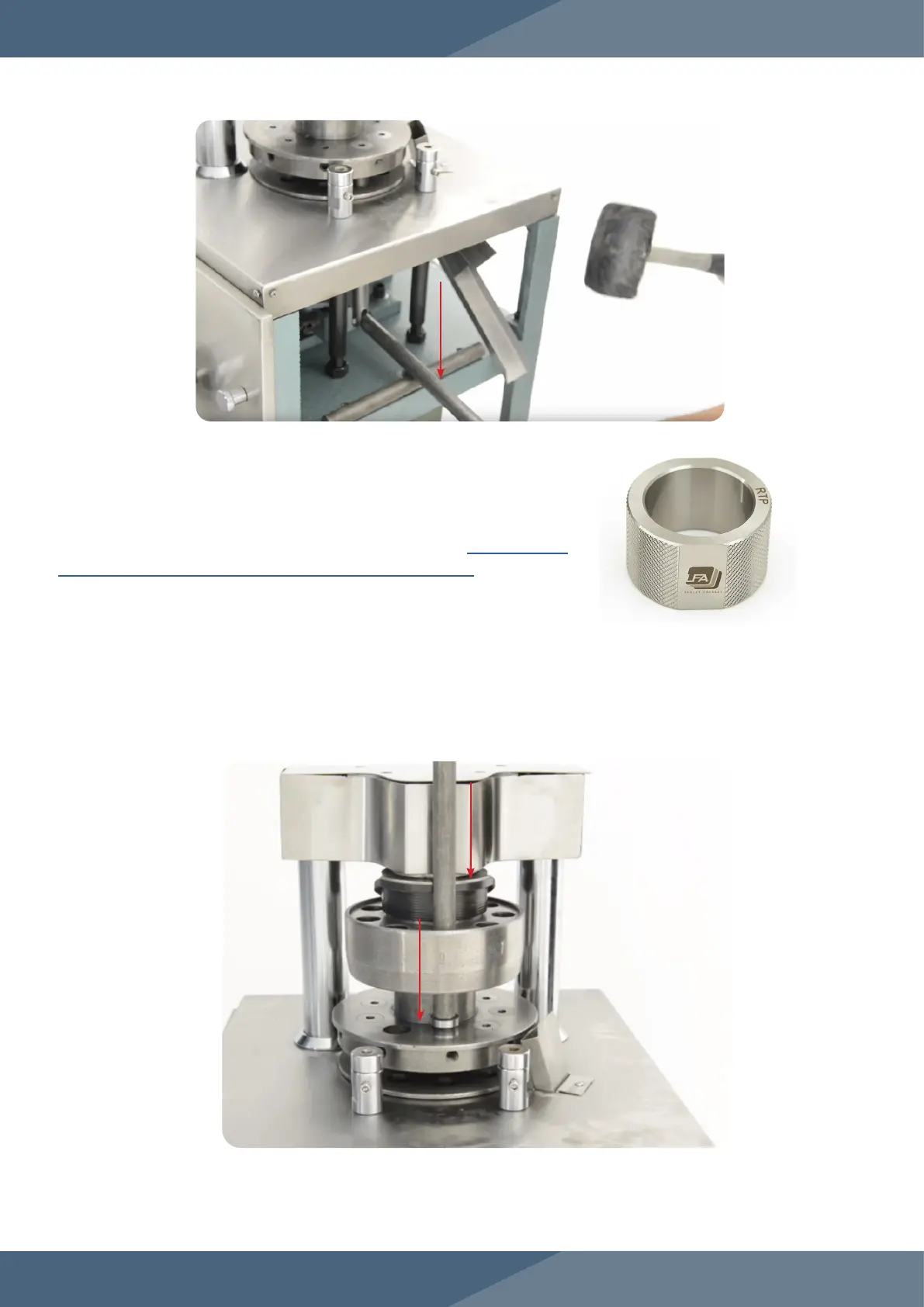

20. Tap the end of the Die Removal Bar with a rubber mallet until the Die pops up from the Turret.
21. Repeat steps 15-20 until all Dies are removed.
Replace the Tooling
22. Position the new Die on the Turret.
22.1 Note: Place a bit of grease around the new Die's sides to make insertion
easier.
23. Insert the Die Installation Bar through the Upper Punch's hole and over the new Die.
24. Tap the Die Installation Bar with a rubber mallet until the new Die is inserted into the Turret.
24.1 Note: Make sure that the new Die is flush with the Turret.
25. Reinsert the Die's set screw in the Turret and tighten with an Allen key.
25.1 Note: The Die's set screw are to be tensioned at 16 lbs/ft.
26. Rotate the Handle until the next new Die can be inserted.
27. Repeat steps 22-26 until all the new Dies are secured in the Turret.
Note: To help ensure that the Dies are inserted correctly, LFA
recommends using an Insertion Ring. You can order the Die
Seat Cleaner and Insertion Ring on our website at https://www.
lfatabletpresses.com/die-seat-cleaner-insertion-ring
