LG-Ericsson iPECS ES-2024G User Manual

C HAPTER 1 | Introduction
Description of Hardware
– 20 –
ES-2024G/2024GP
MODE BUTTON
(ES-2024GP)
When the Mode button is depressed, the port LEDs display PoE information.
When the Mode button is not depressed, the port LEDs display link and
activity information.
POWER SUPPLY INLET There is one power inlet on the rear panel of the switch. The standard
power inlet is for the AC power cord.

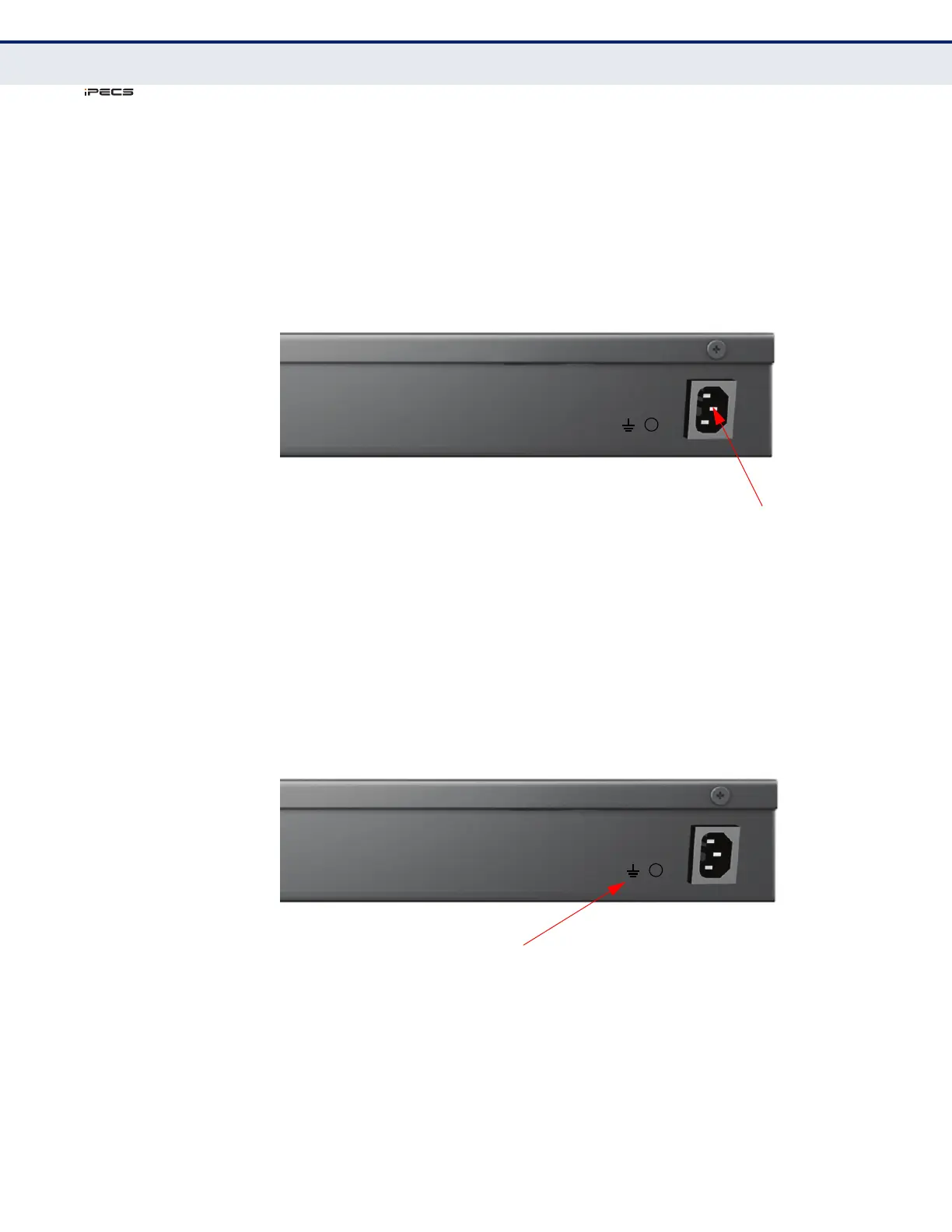

Figure 4: Power Supply Inlet
GROUNDING POINT To prevent accidental electrical shock or damage to your switch, it is
recommended that you ground the switch to an earth point by attaching a
grounding wire (not supplied) to the grounding point located next to the
power inlet, with a metal screw. If located in a tall building, grounding
points include metal drain pipes, and other electrostatic conductive devices
that lead to the ground, or if located on the first floor of a building, the
ground outside itself.
Figure 5: Grounding Point
AC 100-240V, 50-60Hz, 3A
Power Supply Inlet
AC 100-240V, 50-60Hz, 3A
Grounding Point

LG-Ericsson iPECS ES-2024G Specifications

General

Ports	24
Uplink Ports	4 x 1G SFP
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
MAC Address Table Size	8K
PoE	No
Operating Humidity	10% to 90% (non-condensing)
Layer	Layer 2
Management	SNMP
Dimensions	440 x 44 mm
Jumbo Frame Support	9K
Power Consumption	20W
Operating Temperature	0°C
Storage Temperature	70 °C
Storage Humidity	5% to 95% (non-condensing)
