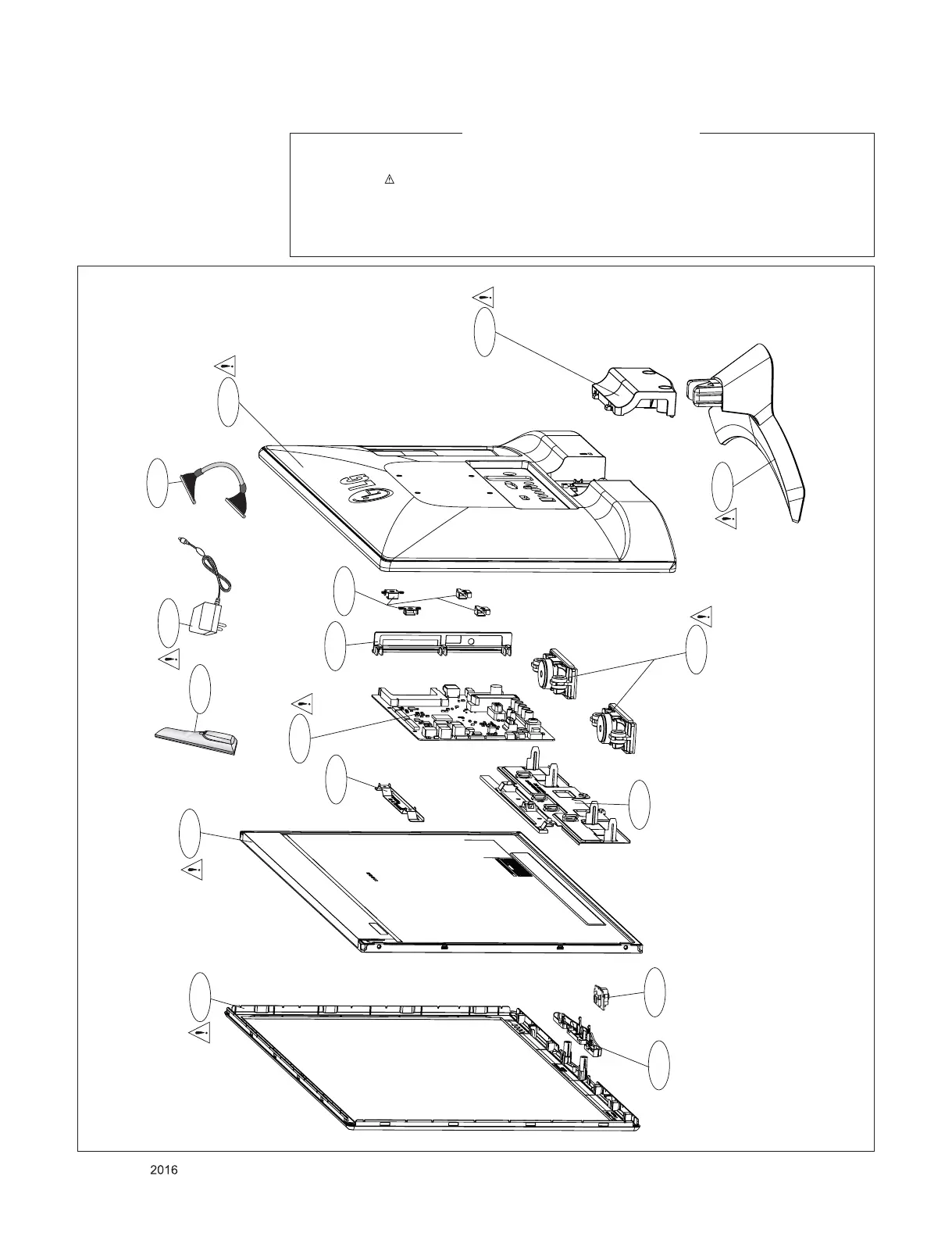

EXPLODED VIEW
300
200
120
900
401
540
910
831
305
541
832
400
510
LV1
A2
730
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts
are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as recommended
in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

LG 22MT41 Series Specifications

General

Brand	LG
Model	22MT41 Series
Category	LED TV
Language	English
