Cloning Procedures (Cont.)
Learning / Teaching a Master TV Setup using a TLL-1100A Clone Programmer
Learn Setup from Master TV
1. Ensure the Master TV is set up completely and the EBL is in Pass-
through Mode.
2. If an analog channel is not available, direct tune the TV to an Aux source,
or select an Aux source, such as AV-1, from the Input Menu. Then, plug
one end of the MPI cable into the TV MPI port.
3. Turn ON the TLL-1100A.
4. Use the MODE button on the TLL-1100A to select Clone Mode.
5. Use the Left/Right arrows on the TLL-1100A to select the Memory CBank
(1 to 8) in which to store the Master TV Setup.
6. Plug the other end of the MPI cable into the MPI port on the bottom of the
TLL-1100A. The Clone Selection Menu will display on the TV screen.
7. Press 1 on the Installer Remote to select LEARN FROM TV from the
Clone Selection Menu. Then, press ENTER to transfer the Master TV
Setup into CBankX on the TLL-1100A.
Learning usually takes about 90 seconds. “LEARNING IN PROGRESS”
will be displayed on the screen while the TLL-1100A copies the Master
Setup. When the Learning process is complete, a “LEARNING COM-
PLETE” message will be displayed.

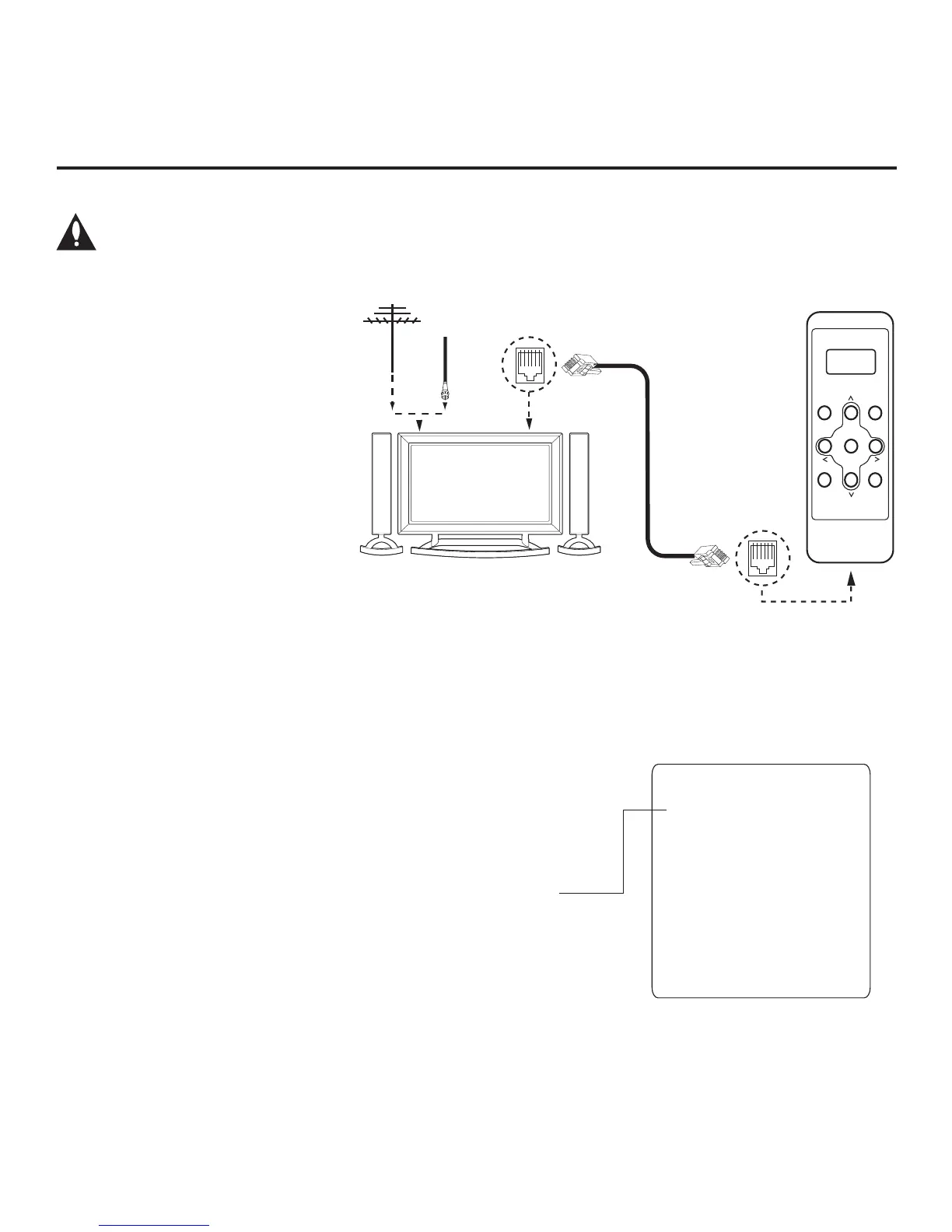

Cloning is accomplished using the TV/
clone programmer MPI ports for com-
munication (see figure).
TLL-1100A Cloning Notes
• Read the IMPORTANT CLONING
INFORMATION on page 27 before
beginning any cloning procedures.
• Ensure the TLL-1100A is either fully
charged or connected to AC power.
• Learning and Teaching is only
possible between identical model
TVs; however, the TLL-1100A clone
programmer can store up to eight
different Master TV Setups.
CLONE SELECTION MENU
Selected Bank: CBankX Saved
(1) LEARN FROM TV
(2) TEACH TO TV
(3) SET CLONE CLOCK FROM TV
(4) SET TV CLOCK FROM CLONE
(5) DISPLAY TV SETUP
(6) DISPLAY CLONE SETUP
CLONE CLOCK = XX:XX
TV CLOCK = XX:XX
THE CLONE IS VERSION VX.X.X
-
-
To change menu items, press
channel keys or digits.
To execute item, press Enter.
Warning: Do not connect a clone programmer to a PPV card installed in the Master or Target
TVs. Also, if the TV is in LodgeNet PPV Mode (check with the site administrator if you are
not certain), do not connect a clone programmer to the GAME CONTROL/MPI port. Either of
these actions will damage the clone programmer and, if applicable, the PPV card.
Antenna
or CATV
CLONE SELECTION MENU
Selected Bank: CBankX Saved
(1) LEARN FROM TV
(2) TEACH TO TV
(3) SET CLONE CLOCK FROM TV
(4) SET TV CLOCK FROM CLONE
(5) DISPLAY TV SETUP
(6) DISPLAY CLONE SETUP
TV Link
Loader
TLL1100A
Ready
TLL-1100A
ENTER
RECEIVE
SEND
MENU
MODE
CHARGE
MPI
Cable
TLL-1100A Clone
Programmer
To Next Page
