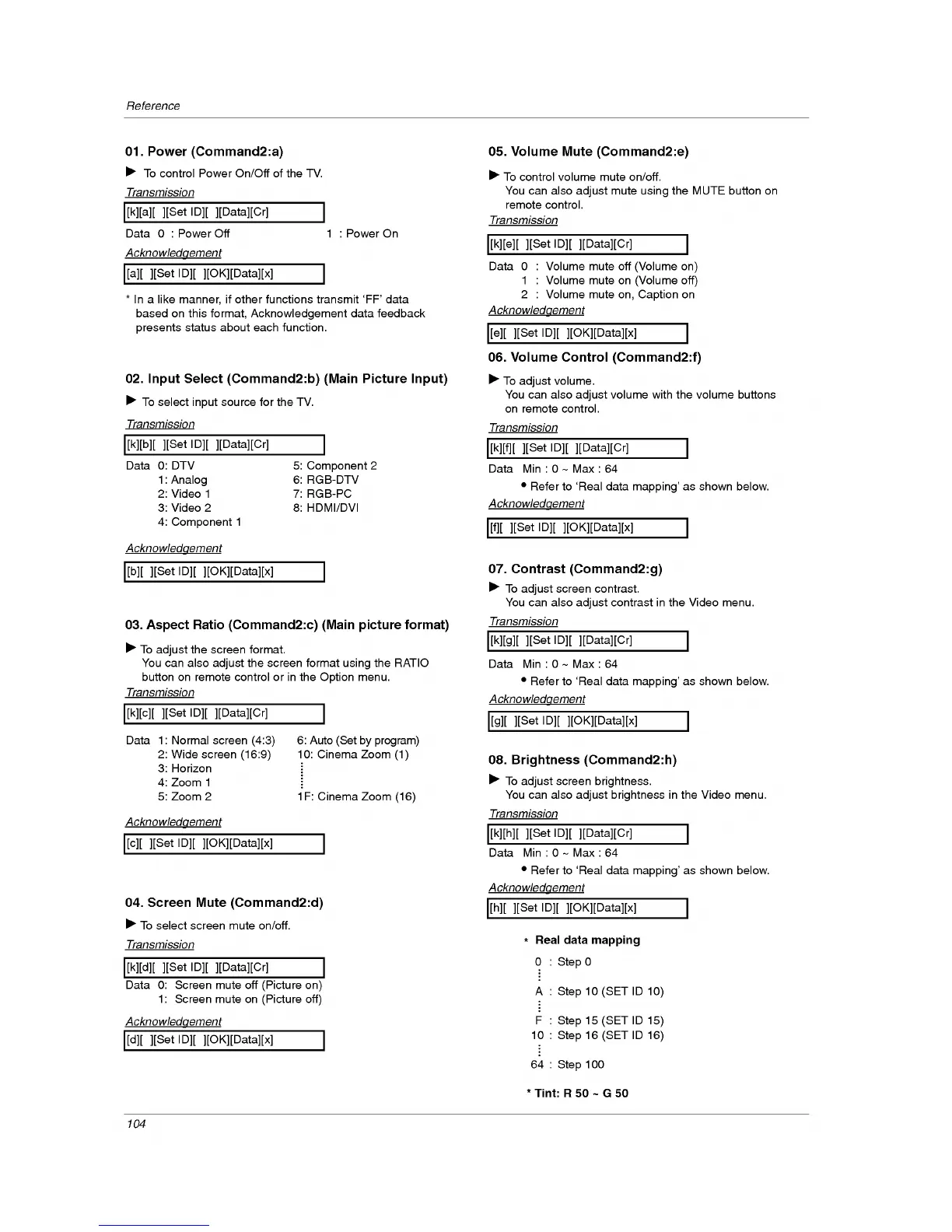

LG 26LX1D User Manual

104
Reference
02.
Input
Select
(Command2:b) (Main
Input)
G
To select
input
source for the TV.
Transmission
Data 0: DTV
1:
Analog
2: Video 1
3: Video 2
4:
Component
1
5:
Component
2
6: RGB-DTV
7: RGB-PC
8: HDMI/DVI
Data 1: Normal screen
(4:3)
2: Wide screen
(16:9)
3: Horizon
4: Zoom 1
5: Zoom 2
6: Auto
(Set by program)
10: Cinema Zoom
(1)
1F: Cinema Zoom
(16)
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power
(Command2:a)
G
To control Power On/Off of the TV.
Transmission
Data 0 : Power Off 1:PowerOn
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
*
In a like
manner,
if other functions transmit 'FF' data
based on this
format,
Acknowledgement
data feedback
presents
status about each function.
*
Real data
mapping
0
:Step0
A
:Step10(SETID10)
F
:Step15(SETID15)
10:Step16(SETID16)
64 :
Step
100
05. Volume Mute
(Command2:e)
G
To control volume mute on/off.
You can also
adjust
mute
using
the MUTE button on
remote control.
Transmission
Data 0 : Volume mute off
(Volume on)
1 : Volume mute on
(Volume off)
2 : Volume mute
on,
Caption
on
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
03.
Aspect
Ratio
(Command2:c) (Main picture format)
G
To
adjust
the screen format.
You can also
adjust
the screen format
using
the RATIO
button on remote control or in the
Option
menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute
(Command2:d)
G
To select screen mute on/off.
Transmission
Data 0: Screen mute off
(Picture on)
1: Screen mute on
(Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control
(Command2:f)
G
To
adjust
volume.
You can also
adjust
volume with the volume buttons
on remote control.
Transmission
Data Min:0~Max:64
?
Refer to 'Real data
mapping'
as shown below.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast
(Command2:g)
G
To
adjust
screen contrast.
You can also
adjust
contrast in the Video menu.
Transmission
Data Min:0~Max:64
?
Refer to 'Real data
mapping'
as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
08.
Brightness (Command2:h)
G
To
adjust
screen
brightness.
You can also
adjust brightness
in the Video menu.
Transmission
Data Min:0~Max:64
?
Refer to 'Real data
mapping'
as shown below.
*Tint:R50~G50
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
