LG 28LX570M Commercial Mode Setup Guide

66
206-4281
PILLOW
SPEAKER
ANTENNA/
CABLE IN
TV-LINK
CFG
SPEAKER OUT
LINE OUT
SERVICE
ONLY
OPTICAL
AUDIO OUT
GAME CONTROL
/ MPI
1
IN
UPDATE
RESET
UPDATE
UPDATE
Restricted to software updates.
RESET
Initiates a hardware reset and
turns the TV OFF.
GAME CONTROL/MPI
When the TV/EBL is in Pass-through Mode, the
MPI function enables an external MPI control
device (i.e., VOD/PPV STB, etc.) to control the TV.
Game Control—EBL in SONIFI PPV Mode only.
SPEAKER OUT / LINE OUT
( 3.5 mm jack) Connect external audio (xed
speaker, variable speaker, or xed line level
[amplier]) equipment. See Reference section,
“External Stereo Speaker Specifications,” for
further information.
HDMI IN 1
Connection for HDMI output
from external device.
ANTENNA/CABLE IN
Connect to Antenna/CATV.
SERVICE ONLY
Restricted to service updates.
TV-LINK CFG
( 3.5 mm jack) Use to connect PC to TV (EBL)
for local FTG Mode via EBL configuration.
OPTICAL AUDIO OUT
Use for amps and home theater systems. Note:
When the TV is OFF, this port is not enabled.
Side Jack Panel
HDMI IN 2
Connection for HDMI output
from external device.
USB IN
Insert USB memory device
for software updates, cloning
purposes, FTG Mode via CPU
configuration, picture/music
entertainment, etc., as applicable.

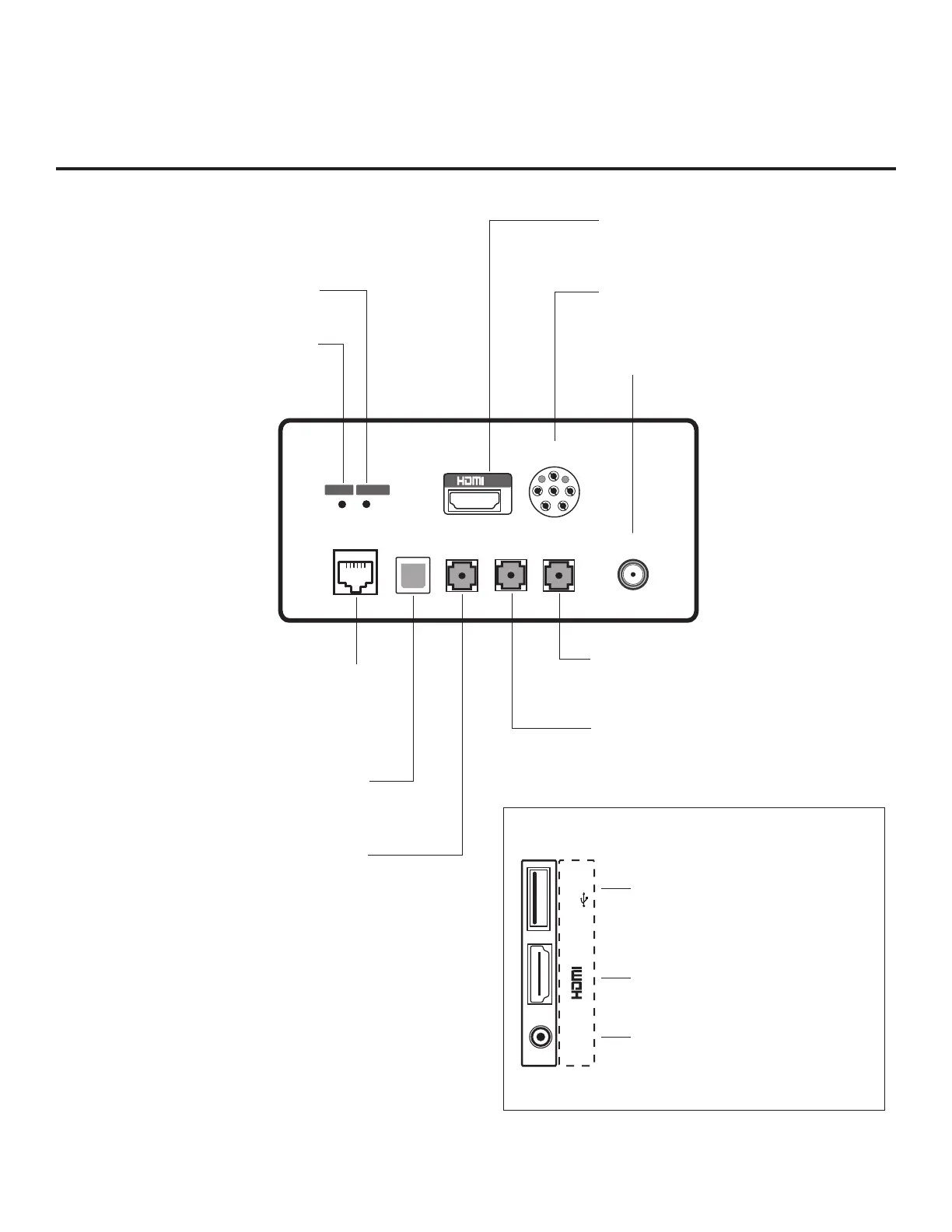

Reference: 22/28LX570M Rear and Side Jack Panels
..........
USB IN
IN 2
AV IN
..........
USB IN
IN 2
PILLOW SPEAKER
Connect pillow speaker here.
AV IN
(3.5 mm jack) Connect video/audio
output from external device (use A/V
adapter cable provided with TV).
