68
206-4281
Reference: External Stereo Speaker Specications
SPEAKER OUT
LINE OUT
EXTERNAL SPEAKER_R- (Sleeve)
EXTERNAL SPEAKER_L- (Ring 1)
EXTERNAL SPEAKER_R+ (Ring 2)
EXTERNAL SPEAKER_L+ (Tip)
3
1
2
1 LEFT (Tip)
2 RIGHT (Ring)
3 GROUND (Sleeve)

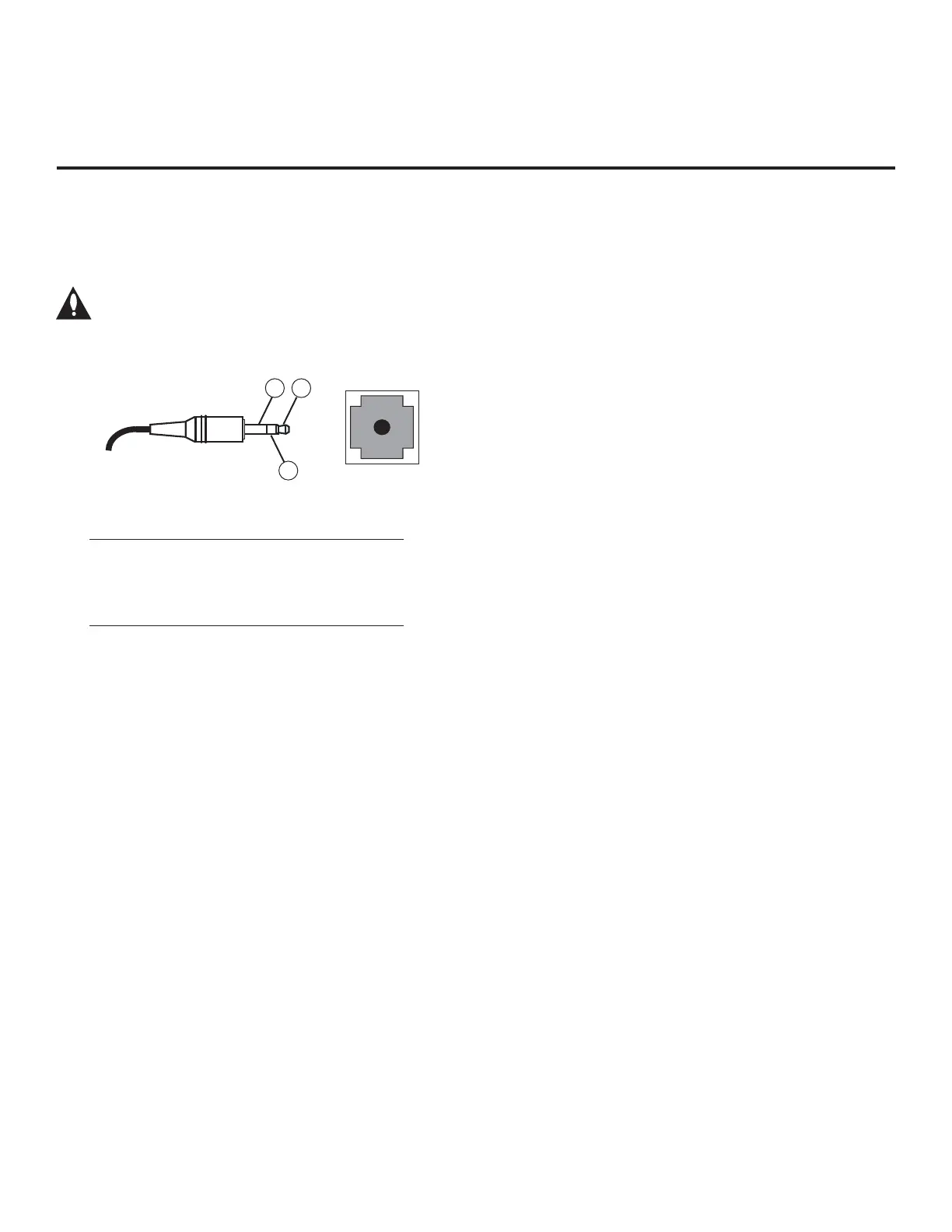

The SPEAKER OUT / LINE OUT 3.5 mm stereo jack on the LX570M rear panel provides stereo speaker
signal outputs (xed speaker, variable speaker, or xed line level [amplier]) for external audio equipment.
Set Installer Menu item 097 AUDIO OUTPUT as required in accordance with external audio equipment
connected to the TV. Also, refer to the following diagram for pinout details.
Caution: Do NOT plug in a mono connector, as this may damage the TV.
