LG 32LC2D Series User Manual

ENGLISH
12
- All cables shown are not included with the TV
- This part of CONNECTION & SETUP mainly use picture for the 42PC1D model.

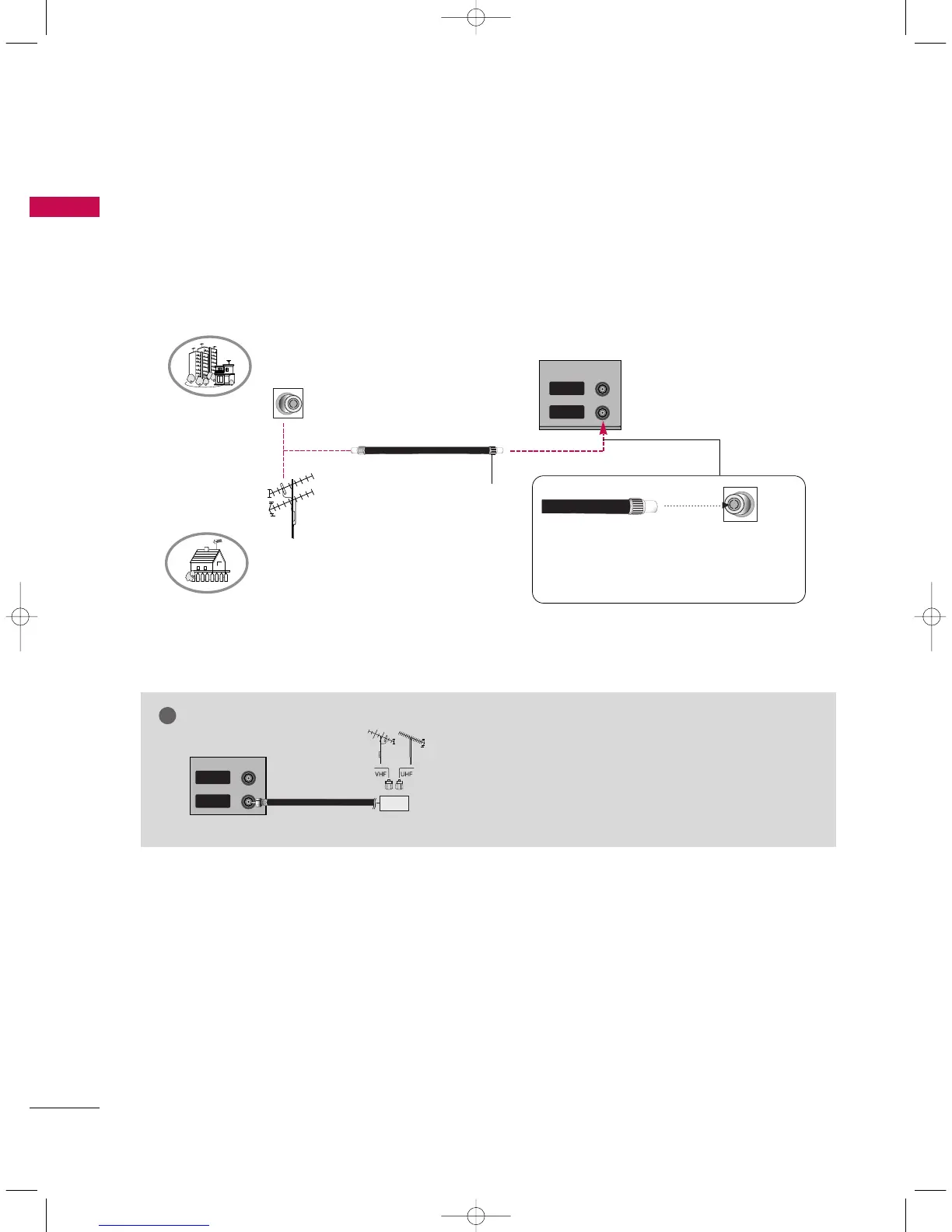

ANTENNA CONNECTION
- For optimum picture quality, adjust antenna direction if needed.
AV IN 4
L/MONO
R
AUDIO
VIDEO
HDMI IN
DIGITAL AUDIO
OUT
OPTICAL
1(DVI)
2
RS-232C IN
(CONTROL & SERVICE)
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI) IN
OUT
VIDEO AUDIO
( )
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
AV IN 3
VARIABLE
AUDIO OUT
REMOTE
CONTROL
AV 1 AV 2 DTV OUT
ANTENNA
IN
ANTENNA
OUT
EJECT PCMCIA CARD SLOT
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor Antenna
Wall Antenna Socket
UHF Antenna
VHF Antenna
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
- Be careful not to bend the bronze wire when
connecting to an antenna port.
- 5V antenna power works In Digital mode
only.
NOTE
!
• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV’s, install a “2-
Way Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your
dealer for assistance.
AV IN 4
L/MONO
R
AUDIO
VIDEO
HDMI IN
DIGITAL AUDIO
OUT
OPTICAL
1(DVI)
2
RS-232C IN
(CONTROL & SERVICE)
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI) IN
OUT
VIDEO AUDIO
( )
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
AV IN 3
VARIABLE
AUDIO OUT
REMOTE
CONTROL
AV 1 AV 2 DTV OUT
ANTENNA
IN
ANTENNA
OUT
EJECT PCMCIA CARD SLOT
Signal Amplifier
CONNECTIONS & SETUP
U0585Cen_CD 12/6/06 4:45 PM Page 12
